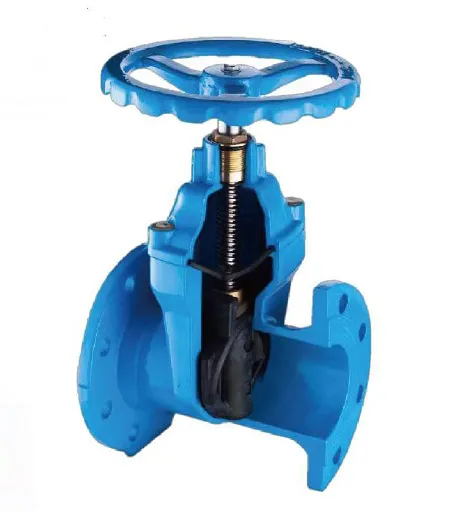

Ductile Iron/Wcb/Stainless Steel Non Rising Stem CF8 Flanged Connection API Gate Valve
Medium and Application
Medium: Freshwater, sewage, seawater, air, steam, food, medicine, oil, acids, etc.
Application:
Municipal Ballast and bilge system Chemical processing
Desalination plants Drilling rigs Drinking water
Dry powder Food and beverage Gas plants
HAVC Mining industry Pulp and Paper industry
Sand handling Seawater Sugar industry
Petroleum and petrochemical Thermo technical water treatment Waste water
Sepcifications
Size | DN40-DN600 1-1/2"-24" |
Working Pressure | PN10/PN16/125LB/150LB |
Face to face | EN558-1,ASME B16.10, AS2638 |
Flange drilled | EN1092-2, ASME B16.1/16.42, AS4087 |
Working environment | Water, Oil, Steam |
Working temperature | <=100ºC |
Available Material | DI, CI, Stainless Steel, Carbon Steel |
Picture & Drawing
Part Material
ITEM | PART NAME | MATERIAL |
1 | Body | Cast Iron or Ductile Iron |
2 | Bonnet | Cast Iron or Ductile Iron |
3 | Disc | Cast Iron or Ductile Iron |
4 | Seal Ring | Cast Brass(Bronze) or Stainless Steel |
5 | Stem | Stainless Steel |
6 | Packing | Graphite |
7 | Gland | Cast Iron or Ductile Iron |
8 | Handwheel | Cast Iron or Ductile Iron |
9 | Gasket | NBR/EPDM |
Dimension
| BS5163 | DIN-F4 | ANSI B16.10 | JISB2002 | EN1092-2 | JIS B2212 | ANSI B16.1 |
DN(mm)&INCH | L | D(PN10) | D(PN16) | K | n-d | D(PN10) | D(PN16) | K | n-d | D | K | n-d |
40(1-1/2") | 165 | 140 | 165 | 165 | 150 | 150 | 110 | 4-19 | 140 | 140 | 105 | 4-19 | 127 | 98.5 | 4-16 |
50(2") | 178 | 150 | 178 | 180 | 165 | 165 | 125 | 4-19 | 155 | 155 | 120 | 4-19/8-19 | 152 | 120.5 | 4-19 |
65(2-1/2") | 190 | 170 | 190 | 190 | 185 | 185 | 145 | 4-19 | 175 | 175 | 140 | 4-19/8-19 | 178 | 193.5 | 4-19 |
80(3") | 203 | 180 | 203 | 100 | 200 | 200 | 160 | 8-19 | 185 | 200 | 150/160 | 8-19/8-23 | 191 | 152.5 | 4-19 |
100(4") | 229 | 190 | 229 | 230 | 220 | 220 | 182 | 8-19 | 210 | 225 | 175/185 | 8-19/8-23 | 229 | 190.5 | 8-19 |
125(5") | 254 | 200 | 254 | 250 | 250 | 250 | 210 | 8-19 | 250 | 270 | 210/225 | 8-23/8-25 | 254 | 216 | 8-22 |
150(6") | 267 | 210 | 267 | 270 | 285 | 285 | 240 | 8-23 | 280 | 305 | 240/260 | 8-23/12-25 | 279 | 241.5 | 8-22 |
200(8") | 292 | 230 | 292 | 290 | 340 | 340 | 295 | 8-23/12-23 | 330 | 350 | 290/305 | 12-23/12-25 | 343 | 298.5 | 8-22 |
250(10") | 330 | 250 | 330 | 330 | 395 | 405 | 350/355 | 12-23/12-27 | 400 | 430 | 355/380 | 12-25/12-27 | 406 | 362 | 12-25 |
300(12") | 356 | 270 | 356 | 350 | 445 | 460 | 400/410 | 12-23/12-27 | 445 | 480 | 400/430 | 16-25/16-27 | 483 | 432 | 12-25 |
350(14") | 381 | 290 | 384 | 381 | 505 | 520 | 460/470 | 16-23/16-27 | 490 | 540 | 445/480 | 16-25/16-33 | 533 | 476 | 12-29 |
400(16") | 406 | 310 | 406 | 406 | 565 | 580 | 515/525 | 16-27/16-32 | 560 | 605 | 510/540 | 16-25/16-33 | 597 | 540 | 16-29 |
450(18") | 132 | 330 | 432 | 132 | 615 | 640 | 565/585 | 20-28/20-31 | 620 | 675 | 565 | 20-27 | 635 | 578 | 16-32 |
500(20") | 157 | 350 | 457 | 457 | 670 | 715 | 620/650 | 20-28/20-34 | 675 | 730 | 620 | 20-27 | 699 | 635 | 20-32 |
600(24") | 508 | 390 | 508 | | 780 | 840 | 725/770 | 20-31/20-37 | | | | | 813 | 749 | 20-35 |
