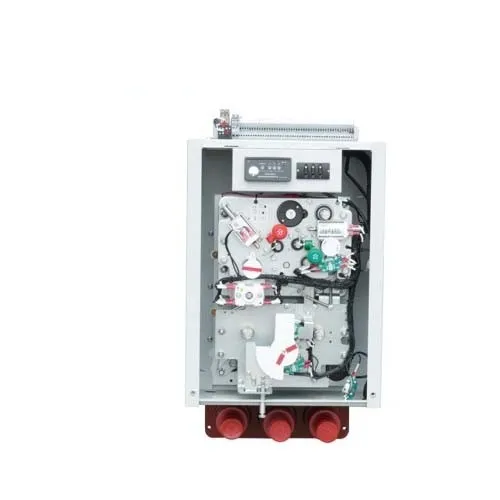

Ahg70V12/- /3 Solid Insulation Ring Net Cabinet Movement

Product Description

Product overview:
Solid insulated switch is the core of solid insulated ring network cabinet. It is an integrated design of vacuum circuit breaker or load switch, isolation switch and grounding switch. It has a compact structure and adopts front and back arrangement. Reduce the intermediate unnecessary transmission link, save labor, save parts, high transmission efficiency. The primary part adopts the APG automatic gel process, and the vacuum isolation chamber and the isolation and grounding switch of the primary part are completely sealed in special epoxy resin, which is used as the solid sealing pole unit with superior insulation and electrical properties. Solid insulated switch can be integrated as a module and switch cabinet assembly into different functional units; The operating mechanism of the switch and the operating mechanism of the isolation switch and the elastic operating mechanism of the main switch have been realized interlock, and the parts of the mechanism are less, reduce the unnecessary transmission link, high reliability, and the isolation switch can be electric operation according to the needs of users.
. Pole unit integration, high climbing distance, with excellent electric field performance.
. Using vacuum arc extinguishing chamber, knife and brake isolation, grounding switch.
. The switch body has high protection grade and anti-condensation function.
. Main bus outlet and cable outlet adopt standard European joint, easy to assemble cabinet, safe and reliable
. Special epoxy resin insulation material.
a. High mechanical strength.
b. Good cracking resistance, thermal shrinkage, thermal conductivity and aging resistance. c. The high glass transition temperature is greater than 110C, so that the insulation ability of epoxy resin does not decrease under the high temperature operating environment.
The isolation switch can be electrically operated according to the needs of users, which can truly realize the automation of distribution network
Easy maintenance, open the panel for parts replacement and line inspection.

Main Technical Parameters
Project		Unit	Gircuit bresker unit	Load switch unit	Fuse assembly electrical unit
Rated voltage		KV	12	12	12
Rated frequency		Hz	50	50	50
Rated current		A	630/1250	630/1250	Depends on the fuse current rating
Rated insulation level	Power frequency withstand voltage (phase to phase and relative)	KV	42	42	42
	Power frequency withstand voltage (vacuum fracture, isolation fracture)		48	48	48
	Power frequency withstand voltage (control and auxiliary circuits)		2	2	2
	Lightning impact withstand voltage (phase to phase and relative)		75	75	75
	Lightning impact withstand voltage (vacuum fracture, isolation fracture)		85	85	85
Rated short-time withstand current		kA	20(25)/4S	20(25)/4S	______
Rated peak tolerable current		kA	50(63)	50(63)	______
Rated short-circuit closing current		kA	50(63)	50(63)	Limited by the high woltage fuse
Rated short-circuit breaking current		kA	20(25)	20(25)	Limited by the high woltage fuse
Rated transfer current		A	______	______	1700
Rated active load breaking current		A	______	______	______
Rated closed-loop breaking current		A	630	630	______
Internal arc test AFLR class		kA/S	20(25)/0.5S	20(25)/0.5S	______
Partial discharge(1.2Ur)		PC	≤10	≤10	______
Protection class (cabinet)			IP4X	IP4X	IP4X
Main circuit resistance		uΩ	≤120	≤120	______
Mechanical life	Circuit breaker/load switch	kA	10000	10000	10000
	solation/groundingswitch		3000	3000	3000

Outline and mounting dimensions drawing:
