XLPE PVC Insulated Low Middle High Voltage 3 Core 4 Core Aluminum Copper Power Electrical Cable Electric Cable
| US$1.00-50.00 | 500 Meters (MOQ) |
Basic Info.
Model NO.
YJLV
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO
Model
Yjlv
Brand
Jinshui
Applied Voltage
1kv and Below
Conductor Type
Solid or Stranded
No. of Cores
4
Additional Features
Flame Retardant and Fire Resistance
Transport Package
Steel-Wood Drum
Specification
2.5~400mm2
Trademark
Jinshui
Origin
China
HS Code
8544492100
Production Capacity
500 Km Per Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
300.000kg
Product Description

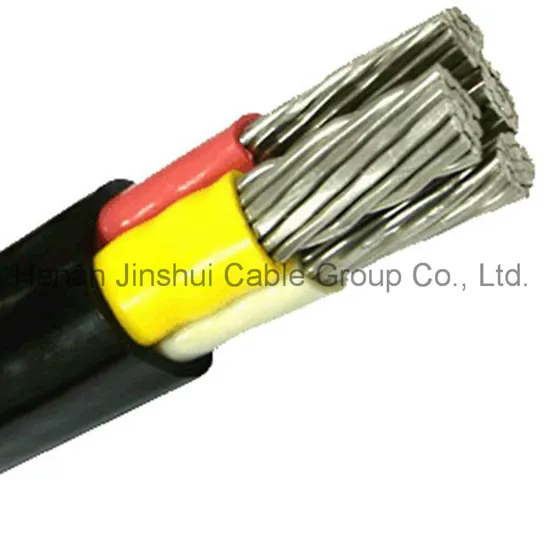

XLPE Insulated Low Voltage 4 Core Aluminum Power CableStandard
IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)
Application
This XLPE insulated aluminum power cable is used in underground power transmission lines of rated voltage 1KV and below. Flame retardant and fire resistant cables are also available.
Product Details
1) Conductor: solid or stranded copper
2) Sectional area: 2.5~400 mm2
3) Insulation: XLPE
4) No. of cores: 4
5) Outer sheath: PVC
6) Max. working temperature: 90ºC
7) Cable size
| Sectional area (mm2) | Insulation thick. (mm) | Sheath thick. (mm) | Overall dia. (mm) | Approx. weight (kg/km) | Max. DC resist. @ 20ºC (Ω/km) |
| 2.5 | 0.7 | 1.8 | 12.4 | 141 | 12.32 |
| 4 | 0.7 | 1.8 | 13.5 | 172 | 7.70 |
| 6 | 0.7 | 1.8 | 14.9 | 217 | 5.13 |
| 10 | 0.7 | 1.8 | 16.7 | 282 | 3.08 |
| 16 | 0.7 | 1.8 | 19.0 | 378 | 1.91 |
| 25 | 0.9 | 1.8 | 21.9 | 527 | 1.20 |
| 35 | 0.9 | 1.8 | 23.7 | 659 | 0.868 |
| 50 | 1.0 | 1.9 | 25.9 | 840 | 0.641 |
| 70 | 1.1 | 2.1 | 29.9 | 1163 | 0.443 |
| 95 | 1.1 | 2.2 | 33.7 | 1524 | 0.320 |
| 120 | 1.2 | 2.3 | 37.3 | 1898 | 0.253 |
| 150 | 1.4 | 2.5 | 41.4 | 2369 | 0.206 |
| 185 | 1.6 | 2.7 | 45.8 | 2955 | 0.164 |
| 240 | 1.7 | 2.9 | 51.6 | 3777 | 0.125 |
| 300 | 1.8 | 3.1 | 56.7 | 4630 | 0.100 |
| 400 | 2.0 | 3.3 | 63.5 | 5877 | 0.0778 |
Packaging details
| Polyethylene film packaging 1) Usually used for cables with an overall diameter 10mm and below 2) 100 meters per roll or as per customer's requirements 3) Packaging dimension: 50cm * 50cm * 20cm or below 4) Weight: 30 kg/roll or below | Steel-wood drum packaging 1) Used for cables with a overall diameter of 10mm and above 2) Drum size: 180cm * 180cm *110cm (different sizes are available according to packaging length) 3) Standard length: as per customer's requirements. |
Customer service
1) Select the right cable as per customer's requirements
2) Design suitable packaging to guarantee safe and the most economic delivery
3) Provide installation and use guidance
4) Product quality guarantee under the normal use
