Medium Mounted Disc Harrow (1BJX series)

Product Description

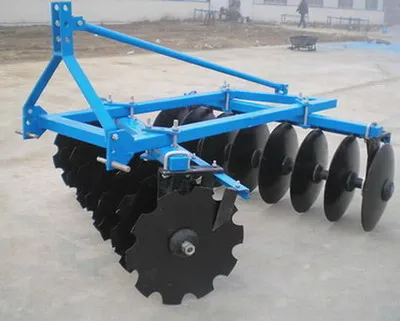

The 1BJX series Middle-duty Disc Harrow
The 1BJX series Middle-duty Disc Harrow's front gangs are assembled with scalloped disc, and rear gangs with plain disc. The harrows are adopted a whole frame made of quadrangular steel tubes by welding, So their structures are simple and reasonable, strong and durable. Their processes are perfect. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good. They're convenient to operate and maintain. Efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BJX series Disc Harrow are suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing. On cultivated land, the machines can make soil and fertilizer mix up, and clear away the stump of plants and be used instead of plough on light or medium soil and preparing seed bed for planting.
Its main features are wide space operation, harrow space transportation, reliable structure with specially-used rolling bearing, easy maintenance, high productivity.
The 1BJX series Middle-duty Disc Harrow could be used with from 35HP to 120HP type tractors.
The middle disc harrow is composed of the following parts: (1)harrow frame assembly(2)scraper(3)scraper cross beam(4)cross draw rod(5)turning-axle pressing(6)pressing plate(7)supporting frame welded joint(8)suspension pin(9)disc assembly(10)U-type bolt(11)front and rear disc assemblies(12)the axle with square cross section(13)disc(14)spacer spool(15)bearing spacer spool(16)internal washer(17)external washer(18)nut M27(19)bearing assembly.

Model	unit	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.6	1BJX-2.8		1BJX-3.0
Working width	m	1.7	2.0	2.2	2.4	2.6	2.8		3.0
depth	cm	12~18
Disc size	mm	560×4
spacer	mm	230
number	pcs	16	18	20	22	24	26		28
	ha/ar	1.3	1.5	1.6	1.8	1.9	2.0		2.1
size	mm	1960*1880*1317	1980*2240*1317	1980*2470*1317	2780*2570*1340	2970*2780*1350	2970*3080*1350		3170*3280*1350
weight	kg	400	434	463	520	700	750		780
	Three point link
Hp	kw	25.7-33	36.7-52	40.4-55	47.7-55	51.4-59		55-66	66-70
