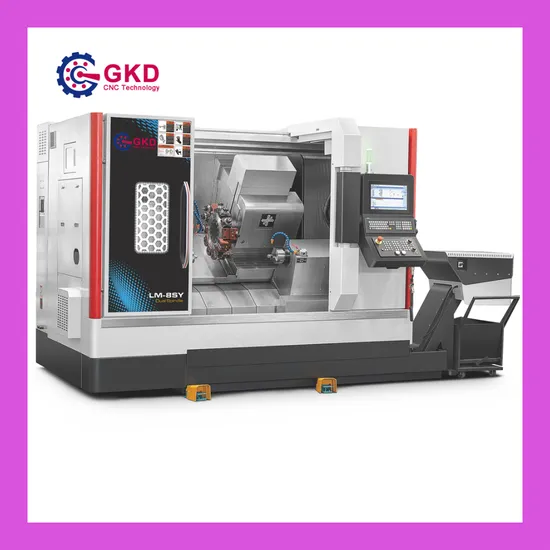

Double Spindles CNC Turning Lathe Machine

Product Description

High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center
CNC turning lathes, manufactured by Anhui Mingju Intelligent Equipment Co., Ltd., have revolutionized the manufacturing industry with their precision and efficiency. These lathes can perform operations like drilling, tapping, turning, and boring, making them essential in industries such as automotive, aerospace, medical, and electronics for producing complex and high-precision components.
Features:
Double dual spindles for increased productivity
Slant bed design for improved stability and precision
CNC technology for accurate and efficient machining
Benefits:
Precision manufacturing for high-quality components
Enhanced productivity with dual spindles
Wide range of applications in various industries
Applications:
Perfect for manufacturing complex components in industries such as automotive, aerospace, medical, and electronics.
Product Parameters

Model	LM-6SY
Double spindle/single power turret
Number of axis	7 Axis(X+Z+Z1+C1+C2+Y+TD)
Max turning diameter on the bed	Ф600mm
Max processing length	500mm
Max processing diameter	Ф500mm
Main spindle nose	A2-5
Main spindle hole	Ф56mm
Bar hole diameter	Ф46mm
Main spindle speed	0-6000rpm
Main spindle Chuck size	6"(Hydraulic chuck)
Sub-spindle nose	A2-4
Sub-spindle hole	Ф46mm
Bar hole diameter	Ф36mm
Sub-spindle speed	0-6000rpm
Sub-spindle chuck size	5"(Hydraulic chuck)
Main Spindle power	7.5KW
Sub-spindle power	5.5KW
X1 axis power	3.1KW
Y1 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power	3.1KW
Hydraulic pump motor power	3.1KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Outer diameter shank	25mm
Inside diameter shank	Ф32mm
Living tools milling speed	0-4000rpm
X1/Y1/Z1/Z2 axis rapid speed	25m/min
X1 axis travel	600mm
Y1 axis travel	140mm(±70mm)
Z1/Z2 axis travel	500mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Oil tank capacity	72L
Cooling tank capacity	180L
Machine weight	5480KG
Machine size	3800*2300*2300mm
Controller	Simens 828D

Company Profile
Anhui Mingju Intelligent Equipment Co., Ltd.
For many years, Anhui Mingju Intelligent Equipment Co., Ltd. (GKD) has been dedicated to integrating resources and innovative technologies to provide superior quality CNC machining centers worldwide.
Located near Hong Kong in China, known as the "World Factory," GKD, along with its strategic European headquarters in Italy (Taiwan), boasts a global sales and service network. With 5 production bases in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu, GKD specializes in vertical machining centers, high-speed gantry machining centers, horizontal machining centers, CNC lathes, and more, catering to various industries like aerospace, automotive, and engineering machinery.
GKD Group is committed to delivering high-quality products and comprehensive solutions that meet customers' demands for high-speed, high-precision, and high-efficiency intelligent equipment. With a focus on cost-effectiveness, GKD provides top-notch manufacturing and after-sales services to customers in numerous countries and regions worldwide.
Experience the excellence of GKD Group's CNC metal cutting machine tools and production lines, designed to elevate your manufacturing processes and meet your specific requirements. Let GKD Group serve you with dedication and expertise!
Our Advantages
Professional CNC Machines Exporting Service
Choose Anhui Mingju Intelligent Equipment Co., Ltd. for a more professional service in the CNC machines exporting field. Benefit from Italy and Taiwanese technical expertise, ensuring better manufacturing ability. Our products are made from high-quality, safe materials at competitive prices.
Various payment terms available: T/T, Western Union, L/C, Paypal
Small orders accepted
Quick responses to inquiries
Safe and fast transportation options
OEM design available for all customers
Certifications
Packaging & Shipping
After Sales Service
Product Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Product Warranty and Support Services:
The quality warranty period for our products is 12 months, starting from the arrival of the shipping commodity at the port of destination. We offer free fittings during the guarantee period, excluding physical damage. Customers are required to return damaged fittings at their own cost before we provide alternative parts. After the warranty period, repair or replacement of fittings will be charged at a reasonable rate.
Our engineers provide online technical support via email, MSN/Skype, camera, video, telephone, and fax for any installation, operation, or maintenance issues. If online support is insufficient, we offer Door to Door service. Customers must cover visa formalities, travel expenses, and accommodation for our engineers during their visit. Alternatively, customers can send their engineers to our factory for free technical training.
For more information, please contact Anhui Mingju Intelligent Equipment Co., Ltd.
FAQ
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Product Description
Our company offers high-quality machinery with the following specifications:
Minimum Order Quantity: 1 set
Warranty: 1 year
Bearing Brand: NSK from Japan
Delivery Time: 15-30 days after payment
Warranty Handling: Free maintenance for product quality issues during the warranty period
Technical Support: Engineers available for installation at buyer's site for a fee
