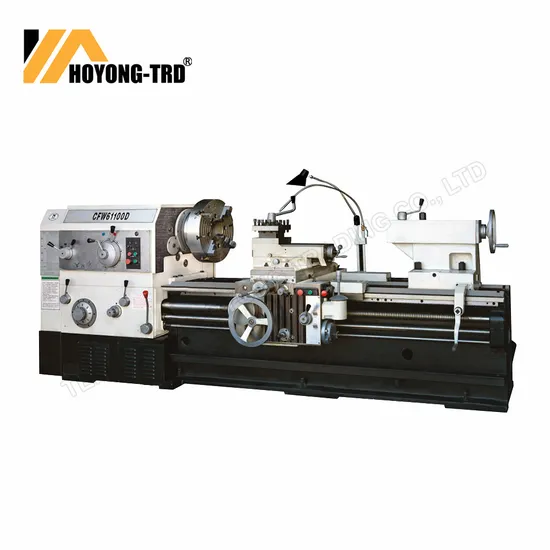

Heavy Vertical Turning Lathe CNC Lathe Machine Cfw61100d Cfw61100q
| US$23,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CFW61100D CFW61100Q
Type
Vertical Lathe
Processing Accessory
Metal
Guide Rail
Vertical Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Length of Workpiece
1500mm
Max.Turning Length
1350mm
Max.Swing Over Bed
1000mm
Main Spindle Bore
104mm
Transport Package
Plywood Case
Specification
6800kgs
Trademark
HOYONG
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
| Item | Unit | CFW61100D | CFW61100Q |
| Max.swing over bed | mm | 1000 | |
| Max.swing over tool-post | mm | 800 | |
| Max.length of workpiece | mm | 1500/2000/3000/4000/5000/6000/8000 | |
| Max.Turning length | mm | 1350/1850/2850/3850/4850/5850/7850 | |
| Span of guide-way | mm | 600 | |
| Main spindle bore | mm | 140 | 104 |
| Spindle taper hole | 1:20/150 | 1:20/120 | |
| Spindle nose | C11 | ||
| Range of spindle speeds | r/min | 5.4~720 | |
| No.of spindle speeds | 18 | ||
| No.of longitudinal&cross feeds | 64 each | ||
| Range of longitudinal feed 1:1 | mm/r | 0.1~1.52 | |
| Range of longitudinal feed 16:1 | Mm/r | 1.6~24.3 | |
| Cross-to-longitudinal feed rate | 1/2 | ||
| Pitch of lead screw | mm | 12 | |
| No.of metric thread | Kinds | 50 | |
| Range of metric thread | Mm | 1-240 | |
| No.of inch thread | Kinds | 26 | |
| Range of inch thread | T.p.i | 14-1 | |
| No.of inch thread | Kinds | 53 | |
| Range of inch thread | mm | 0.5~120 | |
| No.of diametral pitch thread | Kinds | 24 | |
| Range of diametral pitch thread | T.p.i | 28-1 | |
| Rapid speed of carriage | mm/min | 4000 | |
| Max.travel of cross tool-post | mm | 550 | |
| Max.travel of upper tool-post | mm | 200 | |
| Section of tool shank | mm | 32*32 | |
| Dia.of tailstock quill | mm | 125 | |
| Travel of tailstock quill | mm | 250 | |
| Taper of tailstock quill | Morse NO.6 | ||
| Main motor power | KW | 11 | |
| Rapid travel motor | KW | 1.1 | |
| Model | Length of bed(mm) | Overall dimension(L*W*H)mm | Machine weight(Kg) |
| 1500 | 3600*1625*1600 | 5500 | |
| 2000 | 4165*1625*1600 | 5900 | |
| 3000 | 5290*1625*1600 | 6100 | |
| 4000 | 6415*1625*1600 | 6800 | |
| 5000 | 7510*1625*1600 | 7500 | |
| 6000 | 8635*1625*1600 | 8200 | |
| 8000 | 10500*1625*1600 | 9600 | |
| Net weight | Kg | 3000 | |
