Infrared Ceiling Fan Remote Control Kit with Rectangular Receiver
| US$8.24-10.32 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
AS-CF236T
Type
Button
Certification
CE
Universal
Universal
Transmission Distance
7m
Voltage
220 50Hz/240V 60Hz
Material
ABS
Battery Type
6f22 9V Battery
Transport Package
Packed in Paper Box or Bubble Bags
Specification
138mm x 49mm x 23mm
Trademark
iPuray
Origin
China
Production Capacity
100000PCS/Year
Product Description

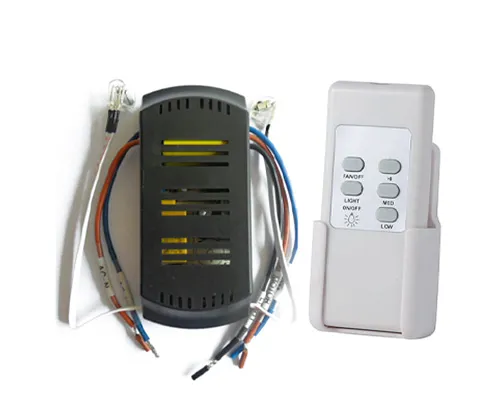

Product Description Features:AS-CF236T ceiling fan remote control kit utilizes infrared control technology. It consists of a remote control and a rectangular shape receiver. It is designed for easy installation and operation:
Transmitter and receiver use infrared technology
Rectangular receiver that can be installed into the canopy easily.
White transmitter that has 5 control keys: One for turning on/off the lights, one for turning on/off the fan, and the other three for controlling the fan speed.
The fan speed can be set at HI, MID, and LOW using 3 speed control keys.No blind spot within 360 degrees.
Good for all ceiling fans; Two load outputs, one for controlling the fan and another one for controlling the lights; Three fan speeds; ABS-V0 flame resistance material; and Elegant design and high quality build. Specification Parameters:
| Input Voltage | 220~240V(50Hz/60Hz) | Operation Environment | No-condensation 20-90% RH,-20ºC~55ºC |
| Fan Wattage | 150W | Light Wattage | 600W |
| Battery for Remote Control | 6F22 9V Battery | Working Distance of Remote Control | 7m |
| Remote Control Dimension | 138mm x 49mm x 23mm | Receiver Dimension | 120mm x 53mm x 23mm |
| Remote Control Weight | 55g | Receiver Weight | 105g |
AS-CF236T remote control unit is battery driven and there is no wiring requirement. The receiver has its all connection wires clearly labelled, as shown in Fig. 1.
Fig. 1 AS-CF236T Receiver Wiring Diagram
ACL: Connected to the hot wire of power supply
ACN: Connected to the neutral wire of power supply
LIGHT: Connected to the lights
FAN: Connected to the fan
COM: Connected to the neutral wire of the fan and/or lights
Warning: Please make sure power is turned off before starting installation!
Once properly wired, the AS-CF236T receiver can be installed into the canopy of the ceiling fan, as shown in Fig. 2.
Fig. 4 AS-CF236T Receiver Installation
Note: The two infrared detectors should be arranged to face two orthogonal directions.
