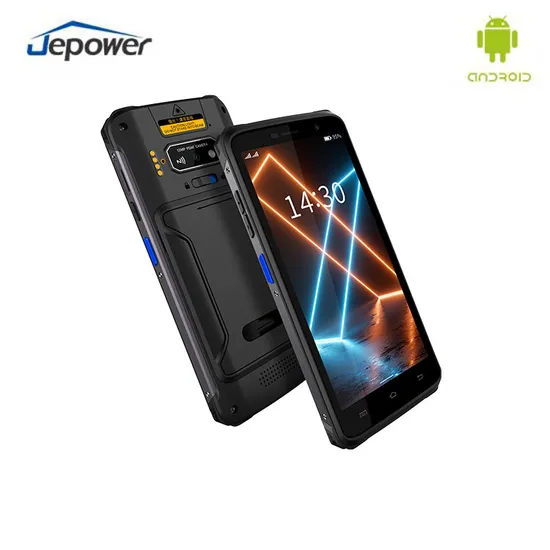

5.45inch IP54 RFID NFC Lf Reader Hot Swappable Battery Industrial Android Portable PDA Handheld Mobile Computer
Basic Info.
Model NO.
F20U
OS
Android
Memory Capacity
64
Applications
Handheld Computer Equipment
CPU Type
8 Core
Internet Connection
4G
Classification
Bar-code Scanner
Software Development Kit (Sdk)
Yes
RFID
Lf(125K)NFC(13.56MHz)/UHF(900MHz) Optional
NFC
NFC 13.56MHz 14443A/14443b/15693
GPS
Support a-GPS
Operate System
Android 14
Processor Type
Mtk6765
Weight
0.5
Function
Smart PDA
Barcode Scanner
1d/2D Barcode Scanner
Product Name
Handheld RFID Reader PDA
Style
Handheld PDA Computer
Operating System
Andriod14
Camera
13MP
WiFi
IEEE 802.11A/B/G/N
Communication
RFID
Transport Package
1
Specification
3kg
Trademark
jepower
Origin
Guangdong, China
Production Capacity
10000
Product Description
Android PDAProduct Parameters
| Specification | ||
| Basic Configuration | CPU | MediaTek MT6771, Octa-cores(4*Cortex-A73 and 4*Cortex -A53), the highest frequency is 2.1GHz |
| OS | Android 10/Android 13/Android 14 | |
| Memory | 6GB RAM + 64GB ROM | |
| Extended Memory | Support maximum 128GB extended MicroSD (TF) card | |
| Display | 5.45 inches LTPS screen, LED backlight, 720*1440 | |
| Touch Screen | 10-points GFF capacitive touch screen | |
| Wi-Fi | IEEE 802.11/a/b/g/n/ac, 2.4GHz + 5GHz Dual-Frequency | |
| Bluetooth | Bluetooth V5.0 | |
| GPS | Support GPS+Glonass+AGPS+Beidou positioning | |
| Camera | 13MP(AF) with flash led rear camera 5MP front camera | |
| Mobile Communications | Support 4G-LTE | 3G | 2G GSM:B2/B3/B5/B8; TD-SCDMA:B34/B39;WCDMA:B1/B8; TDD-LTE Bands:B34/B38/B39/B40/B41; LTE_FDD/TDD Bands:B1/B3/B8 | |
| Battery capacity | 6000mAh detachable rechargeable polymer lithium battery, support 9V/2A quick charge | |
| G-Sensor | Support | |
| Light Sensor | Support | |
| Vibrating alert | Support | |
| Volume | Loud speaker volume, easy to deal with noisy environment | |
| Expansion slot | Micro SIM*1, Micro SIM/TF*1 | |
| Interfaces | USB Type-C *1 | |
| Mechanical Spec | Dimension | 158mm(length)*76mm(width)*16.5mm(thickness) |
| Net Weight | 250g | |
| Package Size | 180mm(length)*100mm(width)*65mm(thickness) | |
| Gross Weight | 530g | |
| Protection Grade | IP67, 6 sides could undertake the impact by falling from 1.5m to the cement ground for may times within the scope of operating temperature | |
| Standard Parts | Charger *1, USB Cable *1 | |
| Optional features | Barcode Reader | Professional 2D Barcode Scan Engine recognizeboth 1D and 2D barcodes1D Barcodes Supported: Code 39, Codabar, Code 128, Discrete 2 of 5,Interleaved 2 of 5, Code 93, UPC-A, UPC-E, EAN-8, EAN-13, MSI, EAN-128, ISBN/ISSN, etc. 2D Barcodes Supported:PDF417, Micro PDF417, QR Code, Micro QR,MaxiCode, Data Matrix, GS1 Composite,Australian Post, British Post, Canadian Post,Japanese Post, etc. |
| NFC | 13.56MHz, ISO14443A/ISO14443B/ISO15693 | |
Jepower Products Mainly Include :
1. Android / WinCE Barcode Scanner PDAs
2. RFID Data Collector
3. Industrial Tablet
4. All in one Android Terminal
5. Android POS Terminals
Certificates: CE, FCC, RoHs, BIS, ISO9001, ISO14001, OHSAS18001
Jepower has 46 software and hardware engineers for R&D and After sales Service.
Welcome to visit our factory and cooperate with us , OEM or ODM orders are acceptable.
Jepower owns 8 invention patents, 20 design patents, 35 utility model patents, total of 63 national technology patents for our products.
