Good Quality Turret Milling Machine X6325 Vertical Milling Machine

Product Description

Product Description

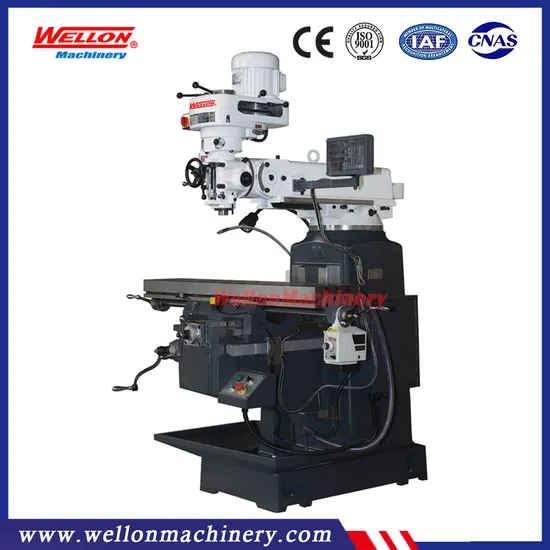

Turret Milling Machine X6325 Vertical Milling Machine
Detailed Photos
Product Parameters

Features: 1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane,
inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round
surface, rack, gear and spline.
2.Rectangular guide way on Y-axis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is
lined with TF wearable material.
3.High speed milling head from Taiwan.
4.Harden the slide way and table surface.
5.Machining the T slot by special tools, make the T slot does not extend out of the table edge, which increase the rigidity and
make the machine have good appearance
6.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving.
7.XYZ axis screws are made in Taiwan.
8.XY screw with two nut make it easy to adjust space between the screw and nut.
9.The XY screw bracket is designed in one base, have good precision and rigidity.
10. The electro system have been designed according to the CE standard.
Technical parameter:

Model	X6325
Table size	254*1270 (254*1370 optional)
Longitudinal travel(mm)	870
Cross travel(mm)	440
Vertical travel(mm)	400
T-slot No.and size(mm)	3*16
Ram travel(mm)	470
Distance from spindle nose to table(mm)	0-400
Spindle speed	16 steps: 66-4540 rpm Variable:60-4200 rpm(Optional)
Spindle hole taper	R8 / ISO30 ISO40 is optional
Auto quill feed(mm/r)	3 steps 0.04/0.08/0.15
Spindle travel(mm)	127
Spindle motor	2.25kw/3hp
Head swivel	90°
Head tilting	45°
Dimension of package	1516*1550*2080
G.W/set(kgs)	1200/1300

Standard accessories:

Drill chuck

Collet chuck kits

Coolant system

Chip tray

Lubricating

Reduction sleeve

Working lamp

Draw bar

Splash guard

Tools and box

Optional accessories:

X axis power feed motor

Y axis power feed motor

Z axis power feed motor

3 axis Digital readout

Air draw bar

58 pcs Clamping kits

Spindle protection

Worktable protection

Machine vice

Variable spindle speed

Frequency mill head

Electric slotting head

Rotary table HV-10

Universal dividing head F11-125A
