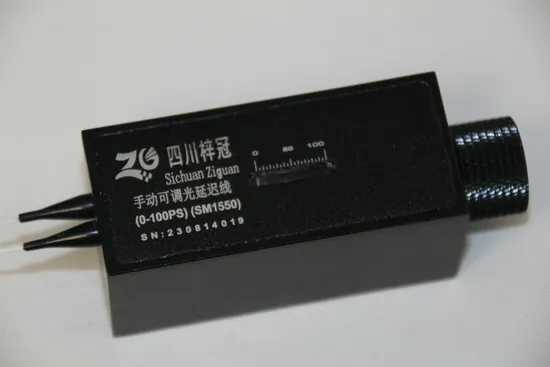

Wide Delay Range Manual Optical Delay Line with High Reliability for Fiber Optical Sensor

Product Description

Product Description Features
Unique delay mechanismcontinuous and reliable operationWide delay rangeHigh delay accuracyHigh reliabilityLower polarization dependent loss(<0.1dB)Simple and compact structure Applications
Radar testing ,calibrationPhased antenna arrayOptical coherence mography X-ray photography methodLight interference measuring methodOptic fiber sensor Specifications

Parameters	Value
Operation wavelength(nm)	1260-1650,1310-1550,Customizable 850,980,1060
Calibration wavelength(nm)	1310-1550
Optical delay range	0~100 ps
	0~330 ps
	0~700 ps
	0~1500ps
Distinguishability	0.05ps
Insertion loss	Typ.0.8dB, max 1.2dB(0-1500PS loss≤1.4db)
Insertion loss variation	±0.25dB over entire range for 0-100PS model
	±0.35 dB over entire range for 0-330PS model
	±0.55 dB over entire range for 0-700PS model
	±1.5 dB over entire range for 0-1500PS model
Return loss	> 55 dB
Extinction ratio	>18 dB
Transmission optical power	Typ. 500mW/ can be Customized 5W/10W/15W/20W/30W
Operating temperature	0~50ºC
Storage temperature	-40~65ºC
Fiber type	Conning SMF-28,or PM Panda fiber
Size (L x W x H)	72.45 x32x 35.5mm for 100ps model
	105x32x 35.5mm for 330ps model
	167.54x32x 35.5mm for 700ps model
	169x 46x 35.5mm for 1500ps model

Ordering Information

ZG	Delay	Fiber type	Fiber length	Connector
	10=100ps 33=330ps 70=700ps 12=1200ps 150=1500ps XX=Others	S9=SMF 900um M5=MMF 50/125/900um M6=MMF 62.5/125/900um PM= PM Panda XX=Others	1=1.0M 2=2.0M	NE=None FA=FC/APC FC=FC/PC SA=SC/APC SC=SC/PC ST=ST/PC LA=LC/APC LC=LC/PC XX=Others

Typical delay lines: FAQ Q1: Can I have a sample order? What is your MOQ?
A1: Any buyer is welcomed to place sample order to test the quality. Low MOQ, 1pcs sample is available.
Q2: What's the lead time?
A2: The normal lead time is about 1 week, for big quantity and special products. Please check lead time with our sales representative.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,Cash payment, etc.
Q4: What is your warranty time?
A4: 1 years warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
