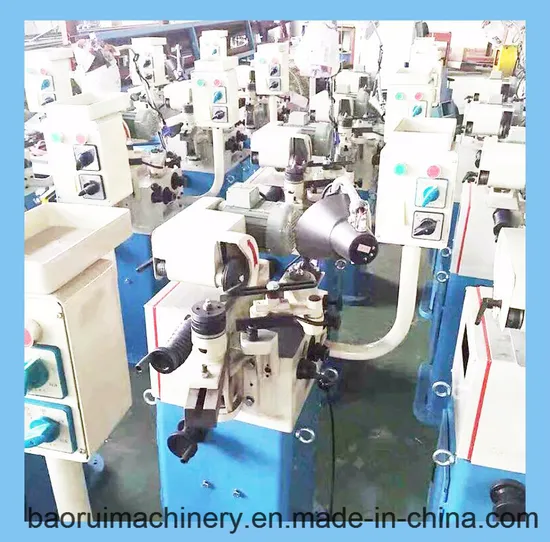

Sg-450 Saw Blade Sharpening and Chamfering Machine
| US$1,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SG-450
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Condition
New
Suitbale Products
Circular Saw Blade
Transport Package
Wooden Case
Specification
450mm
Trademark
Baorui
Origin
China
HS Code
8460390000
Production Capacity
3000 PCS/ Year
Product Description
SG-450 saw blade sharpening machine, can sharpening and chamfering saw blade with many types teeth, fast speed, high accurateTechnological data
| Item | Name | Data |
| 1 | Saw blade outer diameter | Φ50mm-Φ450mm |
| 2 | the teeth distance | 25mm |
| 3 | teeth depth | 8mm |
| 4 | cutting degree | -5°- 30° |
| 5 | feeding speed | 45-180 teeth/ minute |
| 6 | saw blade thickness | 8mm |
| 7 | grinding wheel diameter | Φ75mm-Φ150mm |
| 8 | grinding wheel speed | 4200RPM |
| 9 | the motor power | 1/2HP |
| 10 | the grinding wheel power | 3/4HP |
| 11 | Micro section adjusting angle | ±20° |
| 12 | Rotary corner | 30° left, 45°right |
| 13 | machine size | 800mm x 800mm x 1410mm |
| 14 | weight | 130kgs |
| 15 | Warranty time | 12 months |
