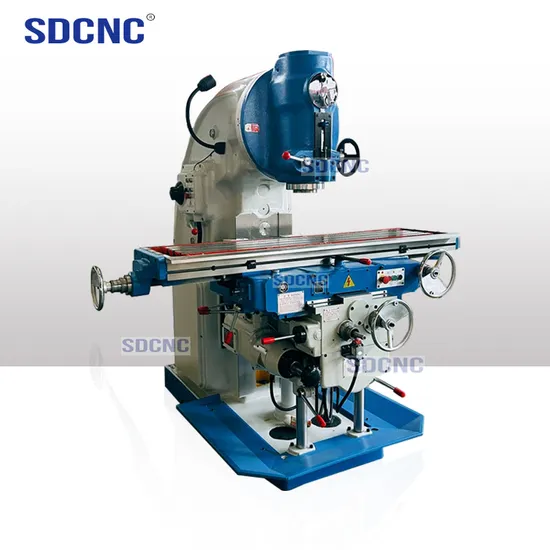

Vertical Milling Machine X5040 Heavy Knee-Type Universal Milling Machine for Metal
| US$16,800.00-18,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X5040
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
1700*400mm
Max. Load of Table
800kg
Vertical Travel (Manual/Auto)
385/365mm
Spindle Motor Power
11kw
Transport Package
Wood Packaging
Specification
2560*2130*2298mm
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2560.00cm * 2130.00cm * 2298.00cm
Package Gross Weight
4300.000kg
Product Description
The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and
other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the
ideal processing equipment.
Product Parameters
Product main technical parameters:
| Specifications | Units | X5040 |
| Table size | mm | 1700x400 |
| T-type slot numbers / width /space | mm | 3-18-90 |
| Max. load of table | kg | 800 |
| Longitudinal travel (manual/auto) | mm | 900/880 |
| Transverse travel(manual/auto) | mm | 315/300 |
| Vertical travel (manual/auto) | mm | 385/365 |
| Cutting feed speed | mm/min | X.Y:23.5-1180. Z:8-394 |
| Rapid feed speed | mm/min | X.Y:2300..Z:770 |
| Spindle travel | mm | 85 |
| Distance between spindle nose and table surface | mm | 130-515 |
| Max. swivel angle of table | ±45° | |
| Spindle speed step | steps | 18 |
| Spindle speed range | rpm | 30-1500 |
| Spindle motor power | KW | 11 |
| Overall dimensions | mm | 2560x2130x2298 |
| Machine weight | Kg | 4250 |
