Lifting Airbags Pneumatic Fishing Boat Lifting and Landing Rubber Airbag for Sale

Product Description

Product DescriptionShip launching airbag also known as marine airbag, rubber airbag, lifting rubber airbag , ship salvage airbag, inflatable airbag, boat lift air bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.Ship launching airbags are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats. Marine airbags are very popular with shipyard, ship owner, and marine supplies company now.Advantages of Ship launching airbag1. long lifespan
2. movable and reusable
3. saving investment costs
4. saving labor and time
Marine rubber airbag is an innovative product of Chinese own proprietary intellectual property rights. It has wide application like ship launching & upgrading, caisson lifting & moving, heavy weights lifting, underwater-engineering buoyancy aid. The marine rubber airbag is not limited to space and heavy machinery, which could efficiently shorten the construction period and save lots of funds. Advantages
1. High strength
2. Good air tightness
3. Good Abrasion-resistance performance and high ageing resistance
4. New anti-explosion design of end part
5. High kneading & compressing resistance and damping capacity
Product structure
Production Line
Application

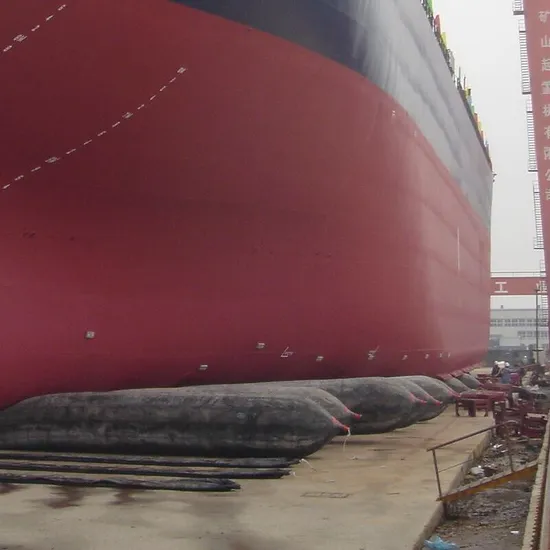

1 Ship Launching & Upgrading
With more than 20 years development in China, Inflatable Upgrading Airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, Inflatable Upgrading Airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with Inflatable Upgrading Airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
Technical Parameter

Series	Model	D(m)	Working Pressure(Mpa)	Working H(m)			Unit Bearing Capacity(ton/m)
				0.4D	0.5D	0.6D	0.4D	0.5D	0.6D
S1	S10	0.8	0.2	0.32	0.4	0.48	15.1	12.6	10
		1	0.16	0.4	0.5	0.6	15.1	12.6	10
		1.2	0.14	0.48	0.6	0.72	15.8	13.2	10.6
		1.5	0.11	0.6	0.75	0.9	15.5	13	10.4
	S11	0.8	0.19	0.32	0.4	0.48	14.3	11.9	9.5
		1	0.15	0.4	0.5	0.6	14.1	11.8	9.4
		1.2	0.13	0.48	0.6	0.72	14.7	12.2	9.8
		1.5	0.1	0.6	0.75	0.9	14.1	11.8	9.4
	S12	0.8	0.24	0.32	0.4	0.48	18.1	15.1	12.1
		1	0.19	0.4	0.5	0.6	17.9	14.9	11.9
		1.2	0.16	0.48	0.6	0.72	18.1	15.1	12.1
		1.5	0.13	0.6	0.75	0.9	18.4	15.3	12.2
		1.8	0.1	0.72	0.9	1.08	17	14.1	11.3
S2	S20	1	0.24	0.4	0.5	0.6	22.6	18.8	15.1
		1.2	0.2	0.48	0.6	0.72	22.6	18.8	15.1
		1.5	0.16	0.6	0.75	0.9	22.6	18.8	15.1
		1.8	0.13	0.72	0.9	1.08	22	18.4	14.7
		2	0.12	0.8	1	1.2	22.6	18.8	15.1
	S21	1	0.27	0.4	0.5	0.6	25.4	21.2	17
		1.2	0.23	0.48	0.6	0.72	26	21.7	17.3
		1.5	0.18	0.6	0.75	0.9	25.4	21.2	17
		1.8	0.15	0.72	0.9	1.08	25.4	21.2	17
		2	0.14	0.8	1	1.2	26.4	22	17.6
	S22	1	0.31	0.4	0.5	0.6	29.2	24.3	19.5
		1.2	0.26	0.48	0.6	0.72	29.4	24..5	19.6
		1.5	0.2	0.6	0.75	0.9	28.3	23.6	18.8
		1.8	0.17	0.72	0.9	1.08	28.8	24	19.2
		2	0.15	0.8	1	1.2	28.3	23.6	18.8
		2.5	0.12	1	1.25	1.5	28.3	23.6	18.8
S3	S30	1	0.35	0.4	0.5	0.6	33	27.5	22
		1.2	0.29	0.48	0.6	0.72	32.8	27.3	21.9
		1.5	0.23	0.6	0.75	0.9	32.5	27.1	21.7
		1.8	0.19	0.72	0.9	1.08	32.2	26.8	21.5
		2	0.17	0.8	1	1.2	32	26.7	21.4
		2.5	0.14	1	1.25	1.5	33	27.5	22

Technical Requirement
According to CB/T 3795--1996, marine rubber fender should meet the following requirements.
1. Dimensional Deviation
Diameter & Effective Length Deviation: ±2%
Total Length Deviation: ±4%
2. Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.
3. Safety Factor: >4.5
4. Air Tightness: depressurization < 5% after 1hour inflation
5. Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.
6. end part anti-explosion design
Company Profile
Qingdao Jerryborg Marine Machinery Co., Ltd is a professional manufacturer of rubber airbags, located in Qingdao, China. The company covers an area of 20,000 square meters and offers a wide range of products with dozens of models and hundreds of specifications. Our products are known for their lightweight, durability and environmental friendliness, and they have been widely used in the fields of water transportation and rescue.Qingdao Jerryborg Marine Machinery Co, Ltd possesses a strong technical foundation, advanced manufacturing processes, modern production equipment, comprehensive testing instruments, and scientific testing methods. lt complies with international standards such as ISO, ASTM, the European Union, and PIANC Moreover, the company has successfully passed third-party inspections from organizations such as China Classification Society (CCS), Bureau Veritas (BV), Lloyd's Register (LR), Technical lnspection Association of Germany (TUV), Swiss SGS, Intertek, and Germanischer Lloyd (GL).At present, our company's products have been exported to over 80 countries and regions worldwide. To meet the diverse needs of various portsterminals, and vessels, we have established long-term collaborations with institutions such as the Chinese Navy, China Maritime Surveillance, the Ministry of Transport of China, China State Shipbuilding Corporation and Beijing Rubber lndustry Design and Research lnstitute. We have also formed a dedicated research team to continuously develop new rubber airbag products and enhance the performance of our existing ones.
Our company consistently adheres to the principles of "integrity as the foundation, customer-centric, quality foremost, and the pursuit of excellence.' We are committed to providing our customers with high-quality products and services through advanced scientific technology and a reliable quality management system. Let us collaborate sincerely to jointly contribute to the prosperity and development of various industries.
Production Facility
FAQ
1. "I have many ships but don't know how to choose the size of rubber floating airbags , can you help me?"
Answer: Don't worry .We are direct manufacturer with more than 20 years' experience. Pls tell us your ships' information , we will suggest suitable rubber floating airbags size and quantity for you.
2."I want to try your rubber floating airbags, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with floating airbags. We also have video . And we can go to your place to teach you use rubber floating pontoons on site.
3."What's the MOQ of your rubber floating airbags?"
Answer: Our MOQ is 1PC.
4."Whats' the lifespan of your rubber floating airbags?"
Answer: Designed lifespan of our rubber floating pontoon is 8 to 10 years.
5."What's the warranty period of your rubber floating airbags ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new rubber floating pontoons for you if it proved to be our quality problem.
6."What kind of certificate can you provide for rubber floating airbags?"
Answer: ISO9001,CCS, BV, SGS etc. certificate is available.
