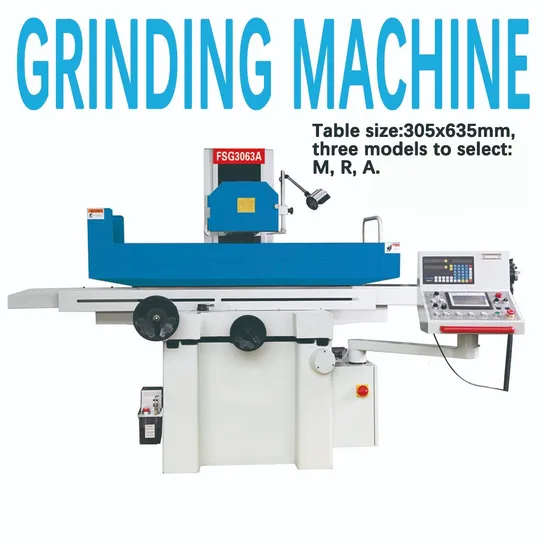

Saddle Moving Auto Surface Grinding Machine 3063
| US$1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
3063
Type
Surface Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Condition
New
Transport Package
Wooden Case
Trademark
OEM
Origin
China
Production Capacity
10000sets/Year
Product Description
•Precision grinding Built-in Electro spindle runs in maintenane-free, suport by preload high precision angular ball bearing.
•The machine bed, table and column are high grade casting piece, which supply strong base for grinding. The slideway is coat with TF wearable material and manual precision scrapped.
•Hardened steel guide way and rolling ball (made in Taiwan) structure is adopt on X axis, with smoothly motion, high accuracy and long life.
•High precision cross and vertical lead screws are made in Taiwan.
| SPECIFICATION | Model | |||
| FSG-3063M | FSG-3063R | FSG-3063A | ||
| Table Size | mm | 305x635 | ||
| Magnetic Chuck Size | mm | 300x600 | ||
| Max. Distance From Spindle Center To Table | mm | 580 | ||
| Table Cross Travel | mm | 340 | ||
| Table Longitudinal Travel | mm | 765 | ||
| Max. Loading Capacity (Include Chuck) | kg | 270 | ||
| Speed of Table Longitudinal Move | m/min | 5~25 | ||
| Cross Motion | ||||
| Intermittent Feed Rate | mm/t | 0.1~8 | ||
| Rapid Speed | mm/min | 990 | ||
| Feed of Handwheel | mm/div | 0.02 | ||
| Vertical Motion | ||||
| Auto Down Feed Rate | mm/t | 0.005-0.05 | ||
| Rapid Down Speed | mm/min | 650 | 480 | |
| Feed of Handwheel | mm/div | 0.005 | ||
| Spindle Rotating Speed | r/min | 1450(50hz) 1750(60hz) | ||
| Grind Wheel Size | mm | 350x40x127 | ||
| Spindle Motor Power | kw | 4 | ||
| Floor Space | mm | 2900x2200x1900 | ||
| Gross Weight | kg | 2800 | ||
| Package Size | kg | 2350x2220x2210 | ||
| Standard Accessories | Optional Accessories | ||
| Operating Manual | Working Lamp | Balancing Stand | Permanent Magnetic Chuck |
| Manual Oil Pump | Coolant Tank | Magnetic Separator | Parallel Wheel Dresser |
| Balancing Arbor | Wheel Flange and Extractor | Paper Filter | 2 Axis Digital Readout |
| Standard Grind Wheel | Wheel Dresser Stand | Dust Exhaust | Sine Vise |
| Leveling Wedge and Screw | Tool Box and Tools | Sine Magnetic Chuck | Radius Dresser |
