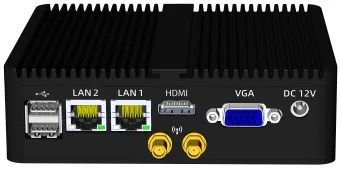

Mini Industrial Controller Dual LAN J4125/N2840 Zrg230 Series
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZRG230
RAM
8GB
Storage Capacity
256GB SSD
Touch Screen
Without Touch Screen
Type
PLC
Processor
Intel Celeron J4125 / J1900 Quad-Core Processor
Memory
2g/4G/8g RAM
Storage
32g/64G/128g/256g Msata SSD
USB
5X USB 2.0, 1 X USB 3.0
LAN
2* Gigabit LAN Port
Display
1* VGA, 1*HDMI
Serial Ports
6* RS232 COM Port, COM2 /COM 3 Support RS485/422
Power Supply
DC 12V 3A
OS Supported
Windows 7, Windows 10, Linux OS
Installation
Desktop or Mounted Installation
Power Supply Type
DC 12V
Specification
210mm*124mm*64.5mm(L*W*H)
Origin
China
HS Code
84714190
Production Capacity
50000 Set /Year
Product Description
Intel X86 J1900 /J4125 Processor Fanless Small Embedded PC Computer 12VFully enclosed fanless design
Build in Mini-PCIe,support WiFi/4G
VESA installation and fixation, supports both side L bracket fixation, or 35mm rail fixation
Compact in size and versatile
Intel® Celeron J1900/J4125 2.0GHz Quad-Core processor
2G/4G/8G RAM; 32G/64G/128G/256G Msata SSD
1 x HDMI 1 x VGA
2x RJ45 Gigabit Ethernet Ports
2*R232 or 2*R485
6x USB
DC 12V Input
Fanless
Specification
| Machine | Item | ZRG230 |
| Size | 136*127*40mm | |
| Material | Fanless,fully closed | |
| Surface | Aluminum chassis(Black) | |
| Package list | Chassis, thermal conductive silicone, WiFi plug, screws, packaging materials | |
| Setting | Processor | Intel® celeron® J1900/ J4125 4 core/2.00GHz |
| Intel ® N2840 dual core ,2.16GHz | ||
| Memory | 4G/8G | |
| Storage | 64G/128G/256G(SSD) | |
| Ethernet | Realtek RTL8111F Gigabit Ethernet ports,Support network Wake-up/PQE | |
| Operation system | Win7/Win10/Linux(J4125 not support Win7) | |
| Interface | 2*LAN,6*USB,2*R232(R485 optional) | |
| 1*HDMI,1*VGA,1*Audio interface (2-in-1) | ||
| WIFI(Option) | Support WIFI/Bluetooth | |
| 4G(Option) | Support 4G/GPS | |
| Power type | 12V DC input,Outer diameter 5.5mm, inner diameter 2.5mm | |
| Adaptor | AC-DC 12V@4A,48W | |
| Ambient | Working temperature | -10ºC~65 ºC |
| Storage temperature | -20ºC~70ºC | |
| Working humidity | 5%~95% Relative humidity, no condensation | |
| Others | Heat dissipation | Fanless cooling design, passive cooling |
| Power on | Switch start, supports automatic startup upon incoming call | |
| Watch dog | hardware reset function(256 level,0~255 second) | |
| Installation | VESA ,both side L bracket fixation, or 35mm rail fixation | |
| Package list | 1 * machine, 1 * power adapter, 1 * power cord, 1 set of screws |
