Automatic 8FT 2600mm Wood Veneer Rotary Peeling Machine for Plywood Veneer Production

Product Description

4/8FT Spindless Wood Veneer Peeling Machine for plywood woodworking machinery
Product Description

No	Veneer Peeling Machine
1	Type	4feet (1300mm)	8feet (2600mm)
2	Model	GT-014feet	GT-018feet
2	Cutting Size(Diameter*Length)	500*1300mm	500*2600mm
4	Min Residual Diameter	28mm	32mm
5	Max Stroke of Tool Slide	500mm	450mm
6	Cutting Thickness	0.5~3.6mm	0.5~3.6mm
7	Cutting Speed	50m/min	48-65m/min
8	Power	21.5KW	60 KW
9	Peeler blade(L*W*H)	1400mm*180mm*16mm	2700mm*180mm*16mm
10	Clipper Size(L*W*H)	1400mm*90mm*12.7mm	2700mm*90mm*12.7mm
11	Dimensions (L*W*H)	4100mm*2150mm*1600mm	6100mm*2200mm*1650mm
12	Total Weight	About 6000KG	About 11000KG

Detailed Photos

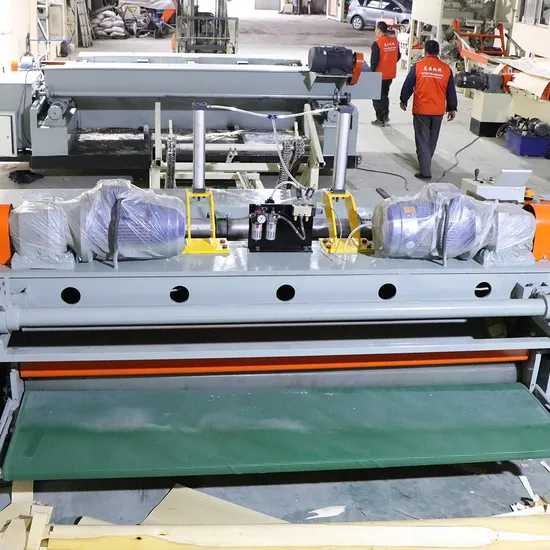

Product Details
1.Automatic Servo Motors
2.High speed and adjustable speed from 40- 110meter/minute
3.Double feeding port
4.Both side of core veneer will be smooth
5.High thickness of steel frame makes the weight heavy
6.Voltage can adjust according to different countries situation




Related Product
we are one of the leading manufacturer and exporter of a durable range of Veneer & Plywood Machine, Particle board production line. Some of our machine
includes plywood core veneer production line, Veneer Dryer, Hot Press, Cold Press, Sanding machine, Panel turnover machine, Automatic DD Saw and Glue
Spreader, wood shredder, and other woodworking machinery.

Packaging & Shipping

Company Profile
WHO WE ARE:GTCO Machinery company is located in Linyi --- a commercial and logistics city. After more than 20 years' continuous innovation and development , Machinery has become an outstanding enterprise along with strong power , advanced technology and excellent quality Products are sold worldwide , exported to Asia , Europe , Africa and Oceania... etc
WHAT WE DO:We have strong technical strength, talented people, and constantly introduces various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine ,veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine and glue spreader etc. 2020 years ,we join in the new design and construction machine - stone crusher ,the main product have PE Jaw Crusher, PF Impact crusher , CS Cone crusher Feeder and screen Mobile crusher. etc.We always right here waiting for service to you !Welcome to visit us!
After Sales Service
GTCO Machinery Service Rule:
Pre-sale service: 1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.

Welcome to contact for exact model and competitive price!
