21.5 Ton Crawler Excavator Competes with 320 Excavator Se210

Product Description

Product Description

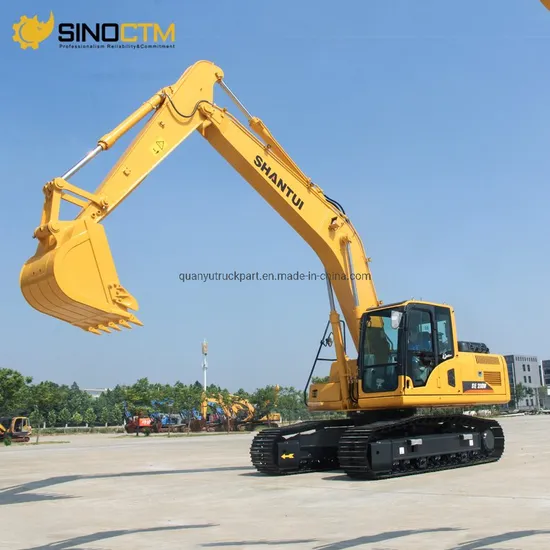

SHANTUI Machine Excavator 20.8 Ton Mining Excavator for Sale (SE210)
As the most shining star in SHANTUI excavator family, SE215 balances productivity with easy-to-use technology features, a new comfortable cab, reduced fuel consumption by up to 8%, and increased the productivity by up to 10% to bring you a durable, low-cost-per-hour excavator for light- to medium-duty applications.
Product Parameters

Comparative item	SE210(Standard version)
Overall dimensions
Overall length (mm)	9543
Ground length (During transport) (mm)	4860
Overall height (To the top of boom) (mm)	3039
Overall width (mm)	2800
Overall height (To top of cab) (mm)	2977
Ground clearance of counterweight (mm)	1120
Minimum ground clearance (mm)	470
Tail turning radius (mm)	2905
Track length (mm)	4160
Track gauge (mm)	2200
Track width (mm)	2800
Standard track shoe width (mm)	600
Turntable width (mm)	2726
Distance from slewing center to tail (mm)	2853
Working range
Maximum digging height (mm)	10029
Maximum dumping height (mm)	7320
Maximum digging depth (mm)	6541
Maximum vertical digging depth (mm)	5735
Maximum digging distance (mm)	9860
Maximum digging distance at ground level (mm)	9673
Working device minimum turning radius (mm)	3041
Maximum lifting height of bulldozer blade (mm)	-
Maximum digging depth of bulldozer blade (mm)	-
Engine
Model	WP7(China III)
Type	6-cylinder, high pressure common rail, and water-cooled and tu-rbo-charg-ed
Displacement (L)	7.14
Rated power (kW/rpm)	116/2000
Hydraulic system
Type of hydraulic pump	Variable displacement dup-le-x plu-ng-er pump
Rated working flow (L/min)	2x218
Bucket
Bucket capacity (m³)	0.9
Swing system
Maximum swing speed (r/min)	11.5
Brake type	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	92.5/99.5
Bucket digging force (KN)	115/124
Operating weight and ground pressure
Operating weight (kg)	20500
Ground pressure (kPa)	45
Traveling system
Traveling motor	Ax-i-al variable displacement p-lun-ger motor
Traveling speed (km/h)	3.3/5.4
Traction force (KN)	201
Gradeability	70%(35°)
Tank capacity
Fuel tank capacity (L)	360
Cooling system (L)	25
Engine oil capacity (L)	24
Hydraulic oil tank/system capacity (L)	250/420

Company Profile

Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products.
Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of "value leading and win-win service", introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers' praise, thus enhancing brand value of the enterprise. Six Free Services Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Hot Sale Products
Packaging & Shipping

Detailed Photos
FAQ
Q1. What's your MOQ?
A1. One unit.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery
