white coal briquette machine/charcoal briquette machine for heating /boiler/cooking

Product Description

Product Description

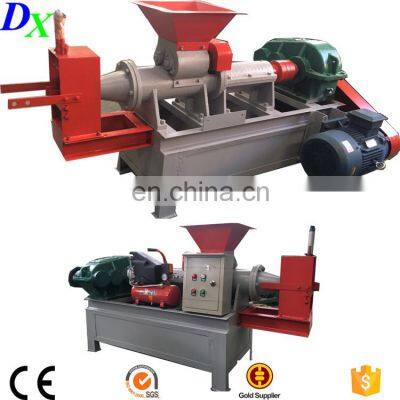

white coal briquette machine/charcoal briquette machine for heating /boiler/cooking
Introduction of white coal briquette machine of Gongyi Dongxing company:
Gongyi Dongxing Material Trade Co., Ltd. is located in Gongyi city and it is specialized in manufacturing Mechanical equipments, including Charcoal briquette machinery, Wood pellet machinery, and mining machinery.With an experienced and professional team, we have exported our products to many countries and regions all over the world.
Our charcoal briquette machine can press coal/charcoal powder into briquettes.
Using the different molds you can get the different shape briquettes.
The final briquette sticks can be used as fuel, heating boiler, barbecue and so on. It is best choice for outside barbecue. It is easy to burn, and one kg briquette can burn more than 3hours.
Data of coal briquette machine

Moisture Content	Carbon Content	Ash	Heat Productivity	Burning Time	Fugitive Constituent	Burning Temperature
0.98%	83.28%	3.68%	7.9 kcal/kg	200 minutes/kg	6.68%	880

Model	MB140 model	MB180 model	MB300 model
Capacity ---Charcoal	400-600kg/h	600-800kg/h	2000-3500kg/h
Capacity ---Coal	1-2T/h	2-3t/h	4-6t/h
Diameter (mm)	20-40	20-60	20-80
Motor power	7.5-11 KW	15-18.5KW	30-45kw
Weight	1.2T	2.5T	8t
Dimension	1700*1200*600mm	2000*1400*700mm	2300*1600*800mm

White coal briquette machine working principle:
The motor transmits power to transmission through the V-belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward coal through forming die to produce the ideal high-pressure coal-stick.
The production line of charcoal briquette machine from coconut shell
The cutter :
Change the different molds can get the different shape:
Packing of the coal briquette machine:
Firstly, we package machine by plastic film to avoid rust, Secondly, we use fumigation - free wooden case to pack machine. In this way, the machine is uneasy to rust when ship it by sea.
Delivery Detail: we will ship machine within 3 days after receipt your deposit.
