Big Circular Blade Laser Cutting Machine 30kw for Granite
| US$20,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LMQ-2200 2500 3000
Application
Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Stone Cutting Machine
Source Voltage
220V/380V/415V, Available Upon Request
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
API, CCC, SONCAP, GOST, ISO, CE, Bridge Stone Block Cutting Machine
Product Name
Gantry Cutting Machine
Main Motor Power
45/55/65kw
After Sales Service Provide
Engineer Available Service Machinery Overseas
Warranty
12 Months
Max. Processing Size
3400X2000X1350mm
Water Consumption
10m3/H
Approximate Weight
9-12 Tons
Quality
European Standard
Transport Package
Seaworthy Wooden Case for Auto Cutting Machine
Specification
7000x4700x6000mm
Trademark
Wanlong
Origin
Fujian, China
HS Code
84641000
Production Capacity
5000sets Per Year
Product Description
Production Description:

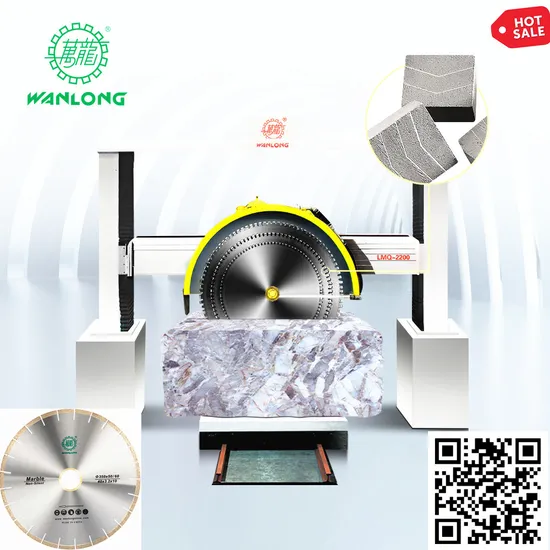

1.Gantry cutting machine consists of solid columns and wide-span crossbeam.
2.It is max. blade can be diameter 2500mm. Also it is suitable for putting blade dia.2200,to work with proper speed.
3.Fully controlled by microcomputer, it can work automatically by programmed. Or work manual to meet the flexibility.
4.Heavy duty casting Iron, strong.
5.Electronic component mostly are Japanese brand for stable & accuracy assurance.
6.It work with motorized table for feeding the block.
Technicial parameter:
| Model | LMQ-2200 | LMQ-2500 | LMQ-3000 | |
| Max. blade diameter | mm | 2200 | 2500 | 3000 |
| Max. NO. of blades | pc | 3 | 1 | 1 |
| Recommended balde combination | mm | Φ2200,Φ1600,Φ940 | Φ2500 | Φ3000 |
| Recommended thickness of blade | mm | 6.5 | 6.5 | 8 |
| Linear speed | m/s | 37.75 | 36.75 | 36.75 |
| Feeding speed | mm/min | 0-5350mm/min | 0-5350mm/min | 0-5350mm/min |
| Vertical feeding speed | mm/min | 590 | 590 | 590 |
| Trolley feeding speed | mm/min | 200 | 200 | 200 |
| Main Motor power | KW | 30 | 30 | 37 |
| Table dimensions( L*W) | mm | 2000*2000 | 2000*2000 | 2000*2000 |
| Max. cutting size(L*W*H) | mm | 3000*2000*950 | 3000*2000*1100 | 3400*2000*1350 |
| Overall dimensions(L*W*H) | mm | 6600*6000*4800 | 6600*6000*4800 | 7000*4700*6000 |
| Water consumption | m3/h | 6 | 6 | 10 |
| Approximate weight | kg | 9000 | 9000 | 12000 |
