Merv-19 Gel Seal HEPA Filter for Pharmacy Workshop Ventilated System

Product Description

Blue Gel Seal Aluminum Alloy Frame H13 HEPA Filter & ULPA Filter
Application:
Commercial and industrial ventilation systems, intermediate or end filter of air conditioning systems.
1) Clean room fresh air conditioning system, end filter of clean room.
2) Wide application in pharmacy, hospitals, food, biological products, health products as well as end filter in clean room.
Material & Features:
1) Filter material: Ultra-thin glass fiber filter paper, artificial fiber filter paper.
2) Separator: Hot melt adhesive.
3) Protective mesh: Diamond metal paint sprayed.
4) Outer frame: Aluminum alloy frame.
5) Sealant glue : AB component glue.
6) Liquid tray glue: Long-lasting glue.
7) Feature: Small size, large filter area, easy to install, long life span.
Technical Parameters:
* Filtration grade: H13,H14,U15,U16,U17(EN779)
* Porosity: Particles ≥0.5μm,≥0.3μm,≥0.1μm
* Filter efficiency: 99%,99.9%,99.99%,99.999%,99.9999%,99.99999%(ASHRAE52.1-1992)
* Humidity resistance: ≤100%RH
* Resistance to temperature: ≤80ºC
* Instantaneous temperature resistance: ≤100ºC
Technical specification:

Dimensions (mm)	Rated air flow (m3/h)	Initial Pressure Drop (Pa)			Filtration Efficiency (%)
W*H*D		0.25m/s	0.5m/s	0.75m/s
450*450*90/93	500	≤120	≤220	≤240	99.99% 99.999% 99.9999% 99.99999%
610*610*90/93	1000
915*610*90/93	1500
1220*610*90/93	2000
Remarks: other specification to be customized, In most occasion, the side liquid tray can be 90mm, while top liquid trap thickness can be 93mm.

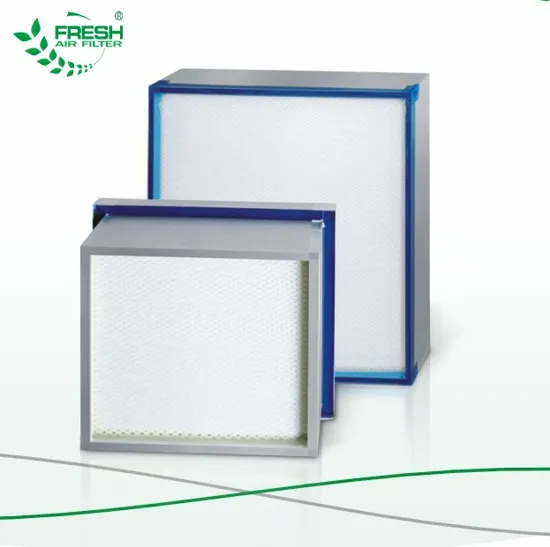

Product Display:
Frequently Asked Questions
1. When can I get the quotation?
Answer: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you accept any OEM/ Customization order?
Answer: Yes, we are open to all OEM orders, once your LOGO is granted to be used by us from you ,We fully understand all ventilation projects / tenders are customized normally, thus we are open to size / spec customization.
3.What Certification, What QA measurements you have?
Answer:
Guangdong Fresh Filter Co.,Ltd is certified by UKAS ISO9001-2015 and TS14969.
All Fresh Air Filter products are strictly following EN779:2012 and EN1822 criteria. For any 3rd party testing, we can always submit to well-known 3rd parties for product testing.
In-house test report(s) can be furnished upon request.
Up to now, FRESH AIR FILTER has been granted for EN1822-5 sample testing for H14 HEPA Filters, also ISO16890 test certificate by European Authority, 3rd party CE certificate for Air filters and Activated carbon filters, all the test reports/certificates can be furnished upon request.
