Cataract Surgical Microscope Ophthalmic Microscope with Smartphone Video System
Basic Info.
Model NO.
OMS2650
Magnification
12.5X
Type
Assistant Microscope
Number of Cylinder
Binoculars
Mobility
Portable
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
LED
Usage
Teaching, Research
Principle
Optics
Gross Weight
32kgs
Net Weight
25kgs
Floor Stand
Available
Transport Package
Standard Export Package
Specification
CE, US FDA, SGS
Trademark
New Vision
Origin
Jiangsu Suzhou
HS Code
90185000
Production Capacity
10, 000 PCS/Year.
Product Description

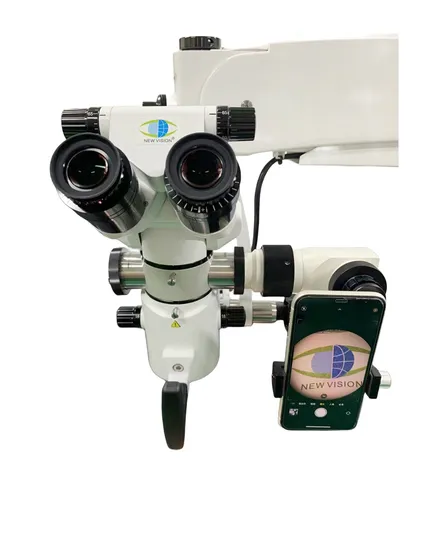

Wetlab MicroscopePortable Ophthalmic Surgical Microscope with smartphone video system
Model: OMS2650
CE & FDA
Highlights: LED illumination
Germany imported Schott optics
High depth of field
Good red reflex
Retinal protection filter
Specifications:
| Eyepiece Magnification | 12.5X widefield eyepieces |
| Objective Lens | f=200 |
| Diopter Adjustment | ±7D |
| Pupil Distance | 54mm~76mm |
| Magnification | 5 Steps by drum rotation |
| Steps of Magnification (y) | 0.4X, 0.6X, 1X, 1.6X, 2.5X |
| Total Magnification | 4.3X, 6.8X, 10.6X, 16.9X, 26.5X |
| Field of View diameter | 52mm, 33mm, 21mm, 13mm, 8.3mm |
| Focusing | Motorized, focus range 40mm; 5 optional objective lenses: F200; |
| Illumination Source | LED with life time > 60, 000 hours |
| Filter | Red free, Retinal Protection filter |
| Foot switch | yes |
| Input Voltage | AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz |
