Dzjx Mortar Stainless Steel Gravity Free U-Shaped Trough Mixer Food Chemical Application

Product Description

Product Description

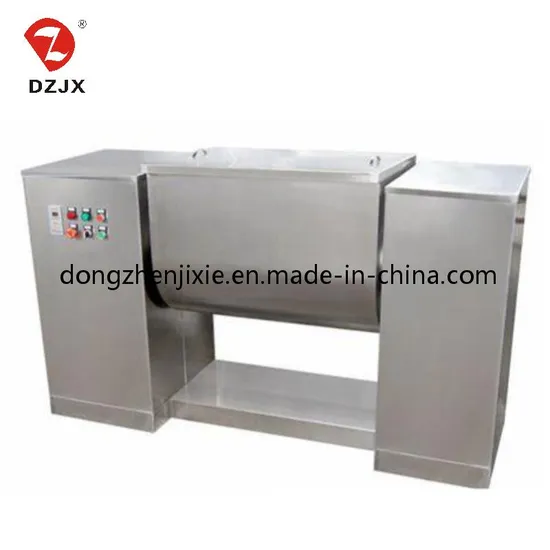

DZJX Mortar stainless steel gravity free U-shaped trough mixer food chemical application
DZCH series sigma/Z blade mixer is widely used for mixing wet powders, pastes and slurries with low and medium viscosity in food, chemical and pharmaceutical industry for small to medium scale production. It consists of trough-shaped mixing bowl, single or double sigma blade, drive motor, tilt motor and support frame. Materials are gravity fed into the mixing bowl. The rotary Z blades completely stir and blend the materials to achieve uniform mixing. After mixing, tilt the mixing bowl for discharging. Heavy duty Double sigma/Z blade mixer is also available for mixing dough and other pasty products with medium to high viscosity.Technical advantages :
1. Robust, simple and compact design requires minimum maintenace ; 2. Made by SUS304 or SUS 316 and mirror polished to meet GMP pharmaceutic sanitary standards ; 3. Special drive shaft sealing design can 100% make sure contamination free of product ; 4. The gap between sigma blade and mixing vessel inner wall is less than 3mm ; 5. High efficient mixing without dead corner ;6. Heating jacket can be equipped for steam, hot water or hot oil.Detailed Photos
Please click here to contact us,view more.
Product details
Please click here to contact us,view more.Product Parameters

Model	DZCH-50	DZCH-100	DZCH-200	DZCH-300	DZCH-400	DZCH-500
Volume (L)	50	100	200	300	400	500
Working volume (L)	30	60	120	180	240	300
Rotation speed(RPM)	24	24	24	24	24	24
Motor powerfor mixing (Kw)	1.5	2.2	4	5.5	5.5	7.5
Tilt motor (kw)	0.37	0.55	0.75	1.1	1.1	1.5
Dimension05LxWxH(mm)	1200*500*950	1400*580*1000	1600*600*1250	2150*700*1250	2300*800*1250	2400*900*12550
Weight( kg)	200	250	320	550	680	720

More models, support customization, please click here to contact usApplications
DZCH series sigma/Z blade mixer is widely used for mixing wet powders, pastes and slurries with low and medium viscosity in food, chemical and pharmaceutical industry for small to medium scale production.Please click here to contact us,view more.Packaging & Shipping
24-hour pre-sales and after-sales service
1 year free warranty, lifetime warranty
A professional after-sales team
Some countries can provide overseas after-sales service
Can assist customers in handling customs clearance and tax refunds Company Profile
Xinxiang Dongzhen machinery Co., LTD
1.With 36 years of professional production of rubber, food, medicine, chemical and mineral equipment experience, and has a good cooperative relationship with the world 500.2.All raw materials purchased with domestic and foreign well-known manufacturers.3.We have designed production lines for many companies, such as laundry detergent production line, clove production line, blue bubble production line, flour production line, yeast production line, etc.4.1 Years Warranty, 15 Days Delivery, Factory Price.5.14800m2 factory, Own R&D Team.6.Free design service, free professional solutions.7.Passed ISO9001, CE, ISO, Intetek certificates.
