Huidu Full Color LED Screen Async Control Card C15/C15c/C35/C35c WiFi LED Controller

Product Description

HuiDu Full Color Led Screen Async Control Card C15/C15C/C35/C35c WIFI LED Controller Asyn LED sending&recieving card C15 (384*320), C15C (384*320) ;C15/C15C Widest 1024, Highest 512 Can be use for one receiving card Equipped with Wi-Fi, Mobile APP management Support 3G/4G (Optional), Internet remote cluster control Support video hard decoding, 60Hz output 4 GB Memory, Expending memory by U-disk Android OS, Quad-core Cortex-A9 1.6GHz CPU

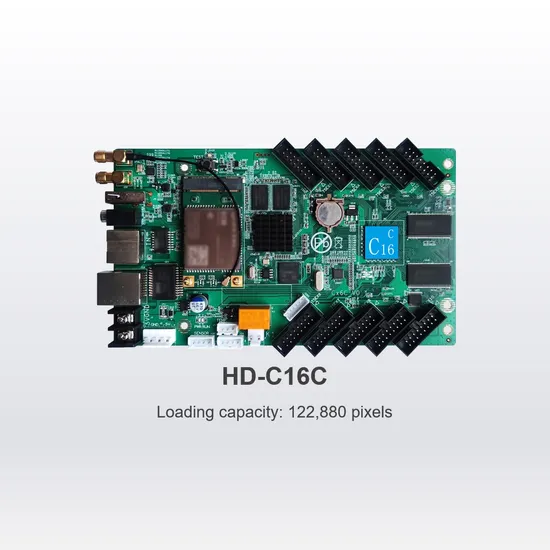

HD-C16C Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video.
1. Features:
1. The maximum loading capacity: 122,880 pixels 2. The maximum width support 8192 pixels. 3. Equipped with Wi-Fi, Mobile APP management. 4. With a relay to control the power supply remotely. 5. Support optional 4G connection, Internet remote control. 6. 10 lines HUB75E ports onboard, can be used for one receiving card.
2. Control Mode:
Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.
Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.
Specification

Function	Parameters
Module type	Compatible with indoor and outdoor full color and single color module Support conventional chip and mainstream PWM chip
Scan Mode	Static to 1/64 scan mode
Control Range	384*320, widest 8192, highest 512
Gray Scale	256-65536
Basic functions	Video, Pictures, Gif, Text, office, Clocks, Timing etc. Remote, Temperature, Humidity, Brightness etc.
Video format	Support 1080P HD video hardware decoding, direct transmission, without transcoding waiting. 60Hz frame frequency output; AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image Format	Support BMP, GIF, JPG, PNG, PBM, PGM, PPM, XPM, XBM etc.
Text	Text editing, Image, Word, Txt, Rtf, Html etc.
Document	DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document format.
Time	Classic Analog clock, digital clock and of clock with image background.
Audio output	Double track stereo audio output.
Memory	4GB Flash memory; Indefinite expanding of U-disk memory.
Communication	Ethernet LAN port, 4G network (optional), Wi-Fi, USB.
Working Temperature	-20ºC-80ºC
Port	INPUTS: 5V DC*1, 100 Mbps RJ45*1, USB 2.0*1, test button*1, sensor port*1, GPS port*1. OUT:1Gbps RJ45*1, AUDIO*1
Power	8W
