1 Ton 2 Ton 10FT Block Chain Hand

Product Description

1 Ton 2 Ton 10ft Block Chain Hand

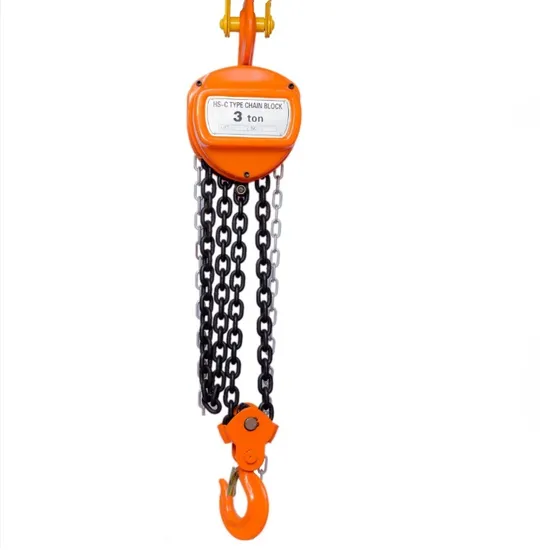

HSC type chain block Description :
1.Simple, efficient, economical design
2.Equipped with hardened load chain for flexibility and long wear
3.Reduced headroom, side clearances and end approach for easy maneuvering of heavy loads in tight places
4.Weston-type load brake requires no lubrication
5.Hand wheel cover with guide slots minimizes jamming and slipping
6.Forged swivel hooks with latches reduce twisting of chain and unintentional unhooking of load when chain is slack
7.One-year warranty
HSC chain block product parameter as belows:

Model		HS-C 0.5	HS-C 1	HS-C 1.5	HS-C 2	HS-C 3	HS-C 5	HS-C 10
Capacity(T)		0.5	1	1.5	2	3	5	10
Standard lift(M)		2.5	2.5	2.5	2.5	3	3	3
Running test load(T)		0.75	1.5	2.25	3	4.5	6.25	12.5
Headroom(drawn close up)H(MM)		255	306	368	396	486	616	700
Load chain	Columns	1	1	1	2	2	2	4
	Dia(mm)	6	6	8	6	8	10	10
Effort required to lift max load(N)		221	304	343	314	343	383	392
Main Dimensions(MM)	A	125	147	183	147	183	215	360
	B	111	126	141	126	141	163	163
	C	24	28	34	34	38	48	64
	D	134	154	192	154	192	224	224
Extra weight per meter of extra lift(KG)		1.7	1.7	2.3	2.5	3.7	5.3	9.7

Our company info:
Baoding Jiazhong Hositing Machinery plant is located in the donglv village,we have 23 sets of Automatic chain production equipment .
We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ26), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.
As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.
We looking forward to your inquiry and hope we can have good businessrelationship in future!
