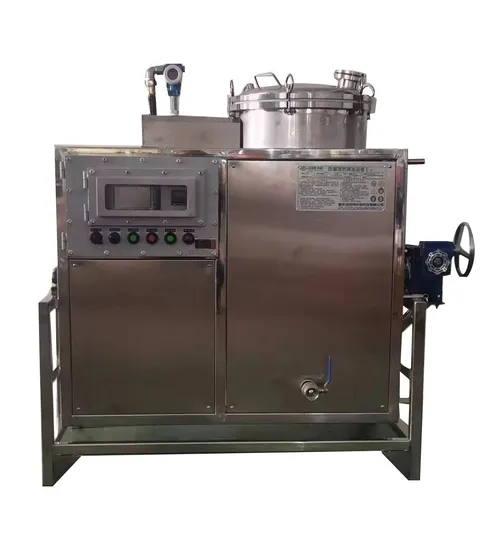

90L Gun Washing Reagent Recycling Machine

Product Description

Product Description
1. Application & Principle of solvent recycling machine
The solvent recovery machine is mainly used in automobile and auto parts manufacturing, repair industry; Notebook computer, electronic products, precision instruments and hardware manufacturing industry; Shoes, plastic products, sports equipment industry; Paint and coating chemical industry; Furniture and home appliance manufacturing industry; printing business; Painting industry; And other industries that use organic solvents as cleaning agents.

2.Suitable solvent
Aromatic solvents: toluene, xylene, trimethylbenzene, solvent oil, etc;
Ketone solvents: acetone, butanone, methyl isobutyl ketone, etc;
Spring solvents: butanol, isopropanol, ethanol, isobutanol, etc;
Chlorination solvents: dichloromethane, trichloroethylene, etc;
Mixed solvents: gun washing water, banana water, mold washing water, stain removing oil, Tiana Water, anti whitening water, plate washing water, car washing water, etc
Installation Instructions
Product Parameters
3. Model List

Model	Capacity(L/D)	Power(KW)	Recovery Time(H)	Voltage
TE-20	20-40	2.0	2.0-2.5	220V/380V
TE-30	30-60	3.0	2.5-3.0	380V
TE-40	80-120	4.0	2.5-3.0	380V
TE-60	120-180	4.0	3.0-3.5	380V
TE-90	90-270	5.0	4.0	380V
TE-125	125-250	6.0	4.0-4.5	380V
TE-150	150-300	8.0	4.5-5.0	380V
TE-250	600-800	16.0	10.0-12.0	380V
TE-300	600-800	16.0	5.0-6.0	380V
TE-450	400-1000	32.0	6.0	380V
TE-600	600-1500	48.0	6.0-8.0	380V

Our Advantages
4. Main Technical Advantages
1. The entire machine adopts explosion-proof structure design, complying with GB3836.1-2010 and GB3836.2-2010 standards; Explosion-proof sign: ExdIIBT4; The main structure is made of 304/201 stainless steel;
2. Adopt explosion-proof electric control box, independently develop a single-chip microcomputer control system or customize a PID intelligent digital controller, accurately control the heating temperature, and set multi-program control for recycling multiple solvents. Unique multi stage temperature segmented control, accurate digital display of heat transfer oil, steam temperature, recovery time, etc., with constant temperature function and fault display;
3. The explosion-proof heater, explosion-proof oil temperature sensor, and steam sensor have passed explosion-proof certification;
4. The trough is a double layer structure, indirectly heated by heat transfer oil, with a pressure free sealing design, and a barrel wall thickness of 2.0-5.5mm;
The cooling system adopts a red copper condenser equipped with a dedicated three-phase asynchronous explosion-proof motor;
6. The sealing gasket is made of polytetrafluoroethylene, seamless, high temperature resistant, and corrosion resistant;
7. Feeding and slag discharge: manual and automatic feeding can be selected;
8. Automatic timed shutdown protection: When the device reaches the set time, it automatically stops heating and the cooling fan continues to work;
9. Constant temperature shutdown protection: When the recovery is completed, the steam temperature is lower than the set temperature, and the automatic shutdown stops heating, and the cooling fan stops working;
Overtemperature protection: When the oil temperature exceeds the set temperature of the high temperature alarm controller, the equipment will give a high temperature alarm and automatically stop working;
11. Overpressure protection: When the passage pressure is higher than 0.4 Bar, the pressure relief valve begins to relieve pressure;
