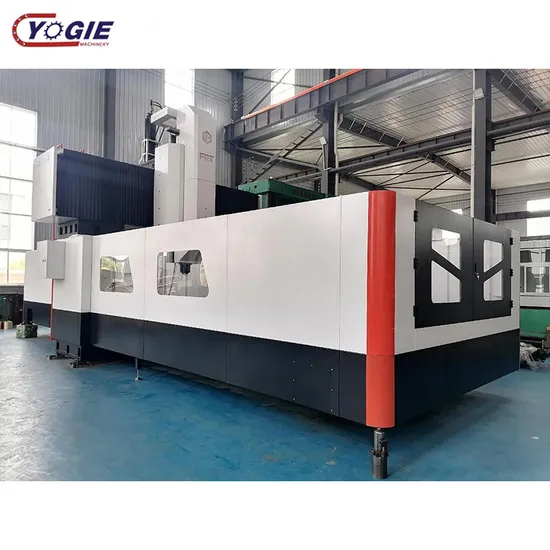

Metal Processing CNC Milling Machine Frt-1313b 3 Axis CNC Gantry Machining Center

Product Description

Product Description
Main Structure
The FRT-1313B series machine tools are mobile worktable structures, mainly composed of worktable, bed, sliding seat, column crossbeam,ram,hydraulic system lubrication system,pneumatic system, cooling filtration system, chip removal device, fixed operatiorpanel, and electronic control system.
Ram & Spindle
lt adopts the best rectangular ratio copper-containing casting structure, cooperates with Japan Hamada gear and diameter 100mm ball bearing, and has high-precision and silent processing; the long sleeve type spindle (300mm) directly goes into the interior of the cavity for intensive repair.
Door Beam
The "door" type integrated casting design, distribution of well-word grid ribs, high-quality Mehanna standard cast iron, two electric furnace aging and two vibration aging, to ensure long-term non-deformation of seismic resistance; increase the step rail span than the peers to ensure processing stability.
Base
The finite element analysis design of the overall ship structure.the double wall and ribs integrated into one, to ensure the most stable heavy-duty seismic foundation. Adopting more specifications of the screw and line rail than the peer to ensure the high rigidity of the machine and the accuracy of the whole machine; the integrated built-in oil-water separation and chip evacuation structure ensures the machine is environmentally friendly and saves money!
Features
Optional full-closed, three-coordinate detection error within 0.01mm
Gear head upgrade high-precision 6000 rpm, capable of rough and fine machining
lmprove manufacturing accuracy, right angle error 0.01mm Product Parameters

Item			Main Parameter
CNC operating system			KND/FANUC/SIEMENS
Working table size		mm	1300×1200
Left and right stroke(X)		mm	1400
Back and forth stroke(Y)		mm	1400
Up and down stroke (Z)		mm	600
Distance from spindle center to column guide		mm	250
Distance from spindle end to worktable surface		mm	170-1170
T-slot of worktable (Number/size/spacing)		mm	8-22×120
Spindle taper(model/sleeve diameter)			BT50/Φ155
Use pull stud modle			P50T-1
Spindle Speed(rpm)		rpm	6000
X axis ball screw specifications		mm	50×16
Y axis ball screw specifications		mm	50×12
Z axis ball screw specifications		mm	50×10
Machine tool positioning accuracy (GB/T 20957.4-2007 standard)		mm	0.01
Repeated positioning accuracy of machine tools (GB/T 20957.4-2007 standard)		mm	0.01
X/Y/Z axis rapid shift		m/min	10/12/10
Cutting speed		m/min	7
Spindle transmission mode			Synchronous toothed belt drive
XYZ axis servo motor transmission mode and transmission ratio			X-axis reducer directly connected 4:1; YZ directly connected transmission Y-axis 1:1,Z-axis 1:1
X,Y axis guide specifications			X-axis two 55-gauge heavy-duty roller linear guides; Y-axis two 55-gauge heavy-duty roller linear guides
Z axis guide specifications			Rectangle hard rail
Square Ram Size		mm	420×420
Spindle power		KW	15
Recommended selection of servo motor parameters		N·M	23/18/18
Air source flow			>0.5
Power supply requirements			380V
Bed cushion height		mm	30
Workbench load bearing		kg	2T
Machine dimensions		mm	3000×2200×1500
Light machine net weight		kg	16t

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
