Diamond Wire Saw Cutting Machine for Granite and Marble Stone Quarry Mining
| US$12,000.00-16,000.00 | 1 Sets (MOQ) |
Basic Info.
Model NO.
HSJ-55A
Change
as Per Your Request
Power
55kw
Model No.
Hsj-55A
After Warranty Service
Online Support, Spare Parts
Color
Can Be Customized
Applicable Industries
Stone Mining
Weight
1500kgs
Dimension(L*W*H)
1200*1200*1400mm
Local Service Location
India
After-Sales Service Provided
Online Support, Field Installation
Showroom Location
None
Use
Quarry Mining
Name
Diamond Wire Saw Stone Cutting Machine
Transport Package
1) Covered by PE Film Wholely. 2) Packed in Plywoo
Specification
2000
Trademark
Hualong
Origin
Fujian, China
Production Capacity
Depends on Different Models
Packaging & Delivery
Package Size
120.00cm * 120.00cm * 140.00cm
Package Gross Weight
1500.000kg
Product Description

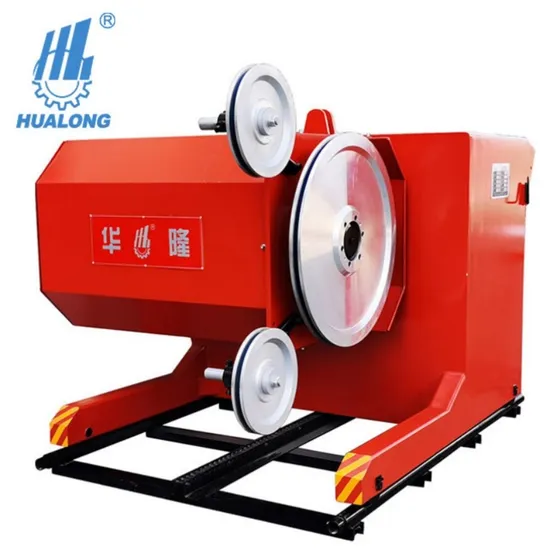

Product ApplicationDiamond Wire Saw HSJ-55A available for cutting at any direction: horizontal, vertical and acclivitous, is suitable for quarry to mine large specification and regular blocks, such as marble, granite, quartzite, basalt etc. also good for bridge, reinforced concrete and other construction cutting.| TECHNICAL DATA | ||||
| Model Number | HSJ-45A | HSJ-55A | HSJ-75A | |
| Power of main motor | kw | 45 | 55 | 75 |
| Length of wire | m | 20-100 | 20-120 | 20-150 |
| Diameter of bead | mm | 11.5 | 11.5 | 11.5 |
| Linear velocity | m/s | 0-30 | 0-30 | 0-40 |
| Lead rail moving distance | m | 6 | 6 | 6 |
| Diameter of driving wheel | mm | Φ700 | Φ700 | Φ700 |
| Gross weight | kg | 1400 | 1500 | 1600 |
| Dimension (L x W x H) | cm | 120x120x140 | 120x120x140 | 120x120x140 |
2) Automatic speed regulation, suitable for different hardness ore cutting requirements.
3) Small cutting jitter, small cutting seam, high rate of finished block product.
4) Low noise while machine is operating
5) Low energy consumption
6) Automatic ending function, more efficient and safe
Our ServicePre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
