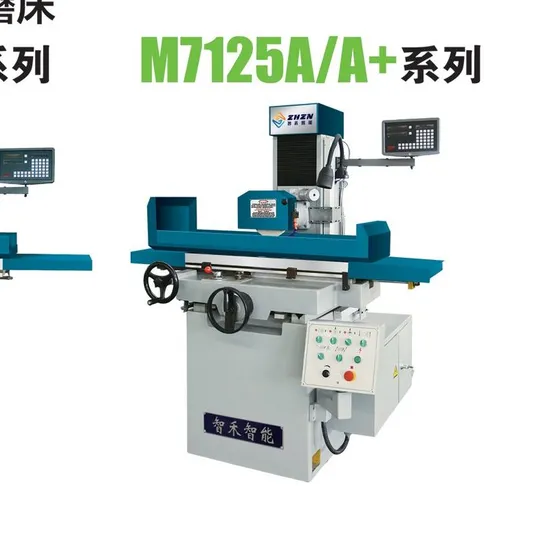

Surface Grinding Machine M7125A 250X500 My1224

Product Description

Surface grinder M7125A /M7125A+ semi auto/full auto
with CE certificate and ISO9001
Surface grinding machine is a precision tool used for shaping and finishing flat surfaces on a workpiece. JIiangSu Zhihe Intelligent Equipment Co Ltd, originally from Nantong Shuangyang Machine Tools Co Ltd, has over 30 years of experience in manufacturing various machine tools. Our machines are known for their exceptional quality and precision. Trust us to provide you with the best surface grinding machines for your business needs.
DATASHEET
PLS BE FREE TO CONTACT ME FOR MORE INFORMATION

Description			M7125A	M7125A+
G rinding Capacity: LX W XH		mm	500X250X330	500X250X330
Longitudinal table travel		mm	520	520
Cross table travel		mm	275	275
Max. Distance from the spindle centre to the worktable surface		mm	410	410
S afety load of bench ( in max )		kg	100	100
T able size		mm	500 X 250	500 X 250
T-slot		mmXn	12 X 1	12 X 1
B ench speed		m/min	3-23	3-23
Cross auto feed		mm	-	-
Cross rapid feed		mm	144	144
C ross handwheel	Per graduation	mm	0.0 2	0.0 2
	per revolution	mm	3	3
Grinding W heel size( DXWXd)		mm	200X16X31.75/32	200X16X31.75/32
S pindle Speed		R/min	2850	2850
Max... Movement of the vertical mechanism		mm	410	410
V ertical fine adjustment revolution		mm	0.15	0.15
V ertical per fine adjustment graduation		mm	0.002	0.002
S pindle moter		kw	1.1	1.1
O verall dimensions: (LXWXH)		mm	1550x1180x1840	1550x1180x1840
Packing size(LXWXH)		mm	1650x1300x1950	1650x1300x1950
G/N weight		T	1.6 / 1.4	1.6 / 1.4

Detail Photos

WORKSHOP PLANT
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
