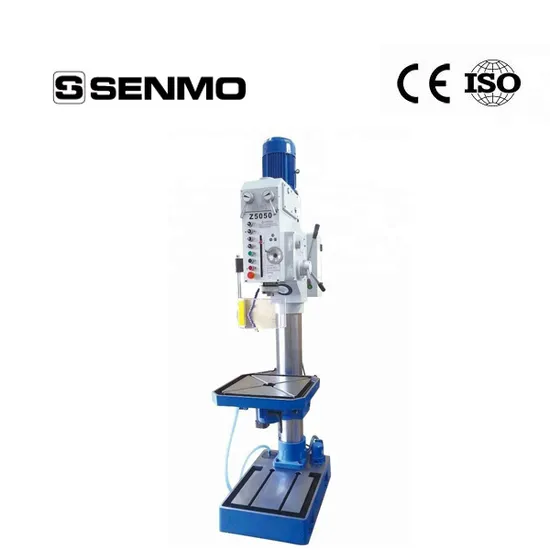

Geared Head Vertical Auto Feed Drilling Machine Z5050
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
Z5050
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Spindle Travel
210mm
Distance Spindle Center to Column Surfac
375mm
Max.Distance Spindle Nose to Worktable
80-800mm
Distance Spindle Nose to Base
1325mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Vertical Drilling Machine Z5050 Feature |
| ·Drilling, tapping, boring, reaming |
| ·Gear driving and strong cutting power |
| ·2 speed strong power motor, wide range speed change |
| ·Electric system according to IEC standard, equipped with short cut and overload protection |
| ·Automatic tools ejectors, equipped with cooling system and tapping mechanism |
| ·2 steps power feed 0.1-0.2mm/rev |
| ·Working table can be rotated 180° and can be tilted 45° |
| Specifications | Z5050 |
| Max.drilling and tapping capacity | Ø50/M33mm |
| Spindle travel | 210mm |
| Distance spindle center to column surface | 375mm |
| Max.distance spindle nose to worktable | 80-800mm |
| Distance spindle nose to base | 1325mm |
| Spindle taper | MT4 |
| Spindle feed range | 0.1,0.2,0.3,0.4mm/r |
| Spindle speeds range | 55-1450rpm |
| Spindle speed steps | 18 |
| Diameter of column | 180mm |
| Worktable size | 580x580mm |
| Dimensions of base | 860x580mm |
| Cooling pump | 75kw |
| Motor power | 3kw |
| Packing size(LxWxH) | 59x90x225cm |
| N.W/G.W | 760/860kg |
| 20' container Q'ty | 18sets |
| Standard Accessories | Optional Accessories |
| Draw bar | L-type table |
| Adapter | Worktable auto up-down system |
| Taper shank for drilling chuck | Depth indicator |
| Drilling chuck | Vice |
| Tilted wedge | |
| Spanner | |
| Oil gun |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
