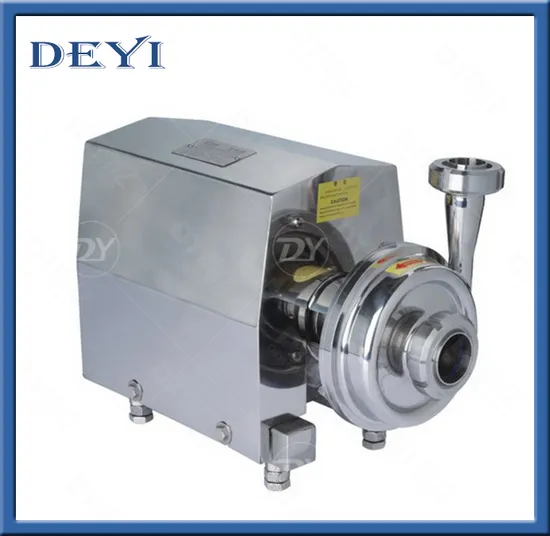

Hygienic Stainless Steel Kscp Series Sanitary Close Impeller Centrifugal Pump
| US$200.00 | 1 set (MOQ) |
Basic Info.
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Open Impeller
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Open
Usage
Pump
Mechanical Seal
Mechanical Seal
Motor
ABB/Siemens/Chinese Brand
Connection
Weld/Clamp/Thread/Union
Motor Cert
UL Motor
Pump Cover
Square/Round
Max Temperature
120 Centigrade
Max Working Pressure
5bar
Material
SS304, SS316L
Interface Finish
Ra Less Than 0.8um
Impeller Speed
2900rpm ( 50Hz), 3600rpm (60Hz)
Transport Package
in Strong Exporting Wooden Case
Specification
3T-100T
Trademark
DEYI
Origin
Made in China
HS Code
8413709990
Production Capacity
1000 Sets Per Month
Product Description
Food Grade Sanitary Hygienic Milk Centrifugal PumpApplications
Our pump is a highly efficient and economical centrifugal pump, which meets the requirements of sanitary and gentle product treatment and chemical resistance. It is available in nine Sizes, KS-5, -10, -15, -20, -25, -30, -35, -40, -45...
Standard design
Our pump consists of a standard motor, stub shaft, mechanical compression coupling (KS-5 with pin bolts), adaptor, back plate, impeller, pump casing and shaft seal. Our pump is designed for CIP withemphasis on large internal roundings and cleanable seals. The sanitary stainless steel cover for protection of the motor, and the complete unit is supported on four adjustable stainless steel legs and Shaft seals. The pump may also be equipped with a double mechanical shaft seal.
Features
| Motor | 0.55-22Kw(KS) | ||
| Impeller | Open type(KS) | ||
| R/minjkl speed | 2900rpm(50Hz),3600rpm(60Hz) | ||
| Flow | 1.5-120m3/h(KS) | ||
| Lift | 75m(KS) | ||
| MAX pressure | 7Bar(Ks) | ||
| MAX temperature | 120°C/248°F | ||
| Connection | Clamp, Thread, Flange, Welding | ||
| Standard | DIN, SMS, 3A, ISO, IDF, RJT | ||
Design and Standard
Design based on 3A hygienic standard
Adjustable stainless steel leg
Mechanical seal: single mechanical seal
Flushed single mechanical seal
Flushed double mechanical seal
Material
Motor housing: Cold rolled stainless steel plate
Investment casting impeller: AISI 304/316L
Contact parts with material: Viton, EPDM
Gasket: SSC-Sic/EPDM
Internal surface: Ra≤0.8um
External surface: mirror polish
Packing & Shipping Information
| Packaging | Plastic → Carton → Wooden case |
| Delivery Port | FOB Shanghai Port or Ningbo Port |
| Shipment Terms | FOB, CFR, CIF, EX-WORKS |
| Payment Terms | L/C, T/T, D/P, Paypal, Western Union |
| Minimum Order | 5 Sets |
| Delivery Lead Time | 7 days after order is comfirmed. |
| Export Market | North America, South America, Southeast Asia, MID East, Western Europe ,etc |
