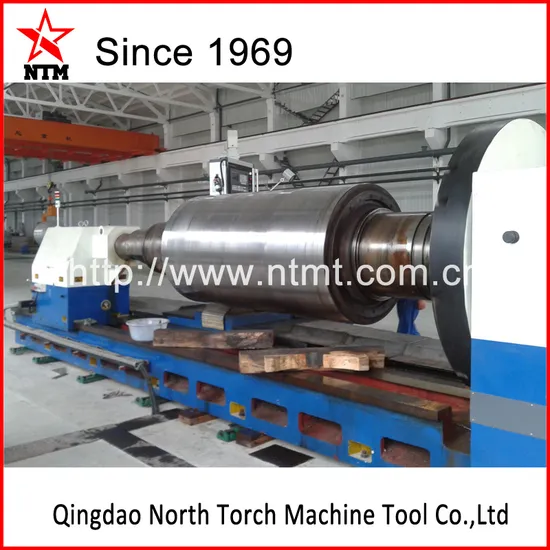

Roll Turning Lathe for Machining Steel Roller (CK84125)

Product Description

China Large Professional Roll Turning Lathe With 50 Years Experience
(Conventional & CNC control,both are Available)
For Turning Steel Roller,Shaft, Cylinders, Oil Pipe, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc

1. Outstanding Characteristics:
Our company was established in 1969 as a military enterprise at the beginning. With more than 50 years experience, we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests.
This series lathe machine can be designed into a CNC Grinding Lathe Machine with turning and Grinding functions. It can help you save time and improve efficiency for the part which needs to be truned and Grinding like marine/vessel propeller shaft, Cylinders, etc.
1). Reasonable Structure and excellent performance.Special Design for Headstock that use Gear Rim to ensure a large Torque of lathe machine .
2.). High Rigidity, Stability and Precision Maintenance
3.) Permanent After-sale Service to ensure maximum customer's profitability.
4.) Engineers are available for free over-sea installation,commissioning and Training the operators at customer's factory.
5.) All components for machine are freely provided within 3 days by Air to prevent customer's production suspended and minimum customer 's loss within warranty period.

6.) The Main machine components are strictly inspected by the advanced CMM to ensure the excellent quality and high precision.
Machine is under Test before shipment by our Customer from Georgia. Inspoection Result is Perfect. Customer is satisfied with our lathe machine.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Application: This series CNC horizontal lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and Grinding functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.
Heavy Duty CNC Lathe with 3500 Swing Diameter and 6 meters long.

2. Technical Parameters

Name		CK84100	CK84125	CK84160	CK84200	CK84250	CK84300
Description	Unit
Max. Swing Over Bed	mm	1000	1250	1600	2000	2500	3000
Max. Swing Over the skateboard	mm	650	800	1200	1650	1800	2800
Max. Weight of Work-piece	T	10	15	20	20	20	40
Max. Length of Work-piece	mm	3000-12000
Gears of Spindle Speed	/	Infinitely Variable Speed/step-less speed
Range of Spindle Speed	r/Min	10-300	10-200	10-160	4-80	4-80	1.6-63
Chuck Diameter	mm	800	1000	1250	1600	2000	2500
X,Z-Axis Feed Range	mm/Min	0-3000
Horizontal Stroke	mm	500	625	800	1000	1250	1000
Longitudinal Stroke	mm	3000-12000
Main Driving Motor	Kw	11	22	45	75	75	75
Cutting Force (Carriage)	Kn	4	6	20	40	40	60
Sleeve Diameter of Tailstock	mm	180	180	290	290	290	480
Spindle Diameter of tailstock	mm	125	125	160	160	160	240

Rermarks:
1. The above 6 models of Heavy Duty Horizontal CNC Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features. So that when you inquire of our lathe machine, please kindly inform us the Length,Diameter,Width,Weight of work-piece, we can recommend the proper machine. Both Conventional or CNC Control are OK, please laso tell us which type you need when you inquire. Thanks
2. This series heavy duty horizontal CNC Lathe Machine have been exported to Georgia, Pakistan, South Africa, Norway, Thailand, Romania, Iran, Russia, Chile for machining Roll, Shaft, Cylinders, railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
3. Package and Shipment
Anti-rust Oil /Anti-Corrosive Oil for the whole machine. Wrapping protective film.
Wooden Box package, vacumm package is also available per customer's special request.

4. After-sale Service& Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe. We can also extend the warranty period according to customer's special demands.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. And we warmly welcome you to visit our company for technonolgy discussion and business negociation. Thanks!
Exported to Chile, Norway, Mexico,Argentina, USA, UAE, India, Pakistan, Iran, Thailand, Colombia, Russia, Thailand, Ethiopia, Azerbaijan, etc. Used for Machining Tyre Mold, Bearing, Flange, Turbime, Propeller, Shaft, Cylinder,Oil Pipes, Textile Pipe, Pulley Part, etc.

Conventional Lathe Machine
