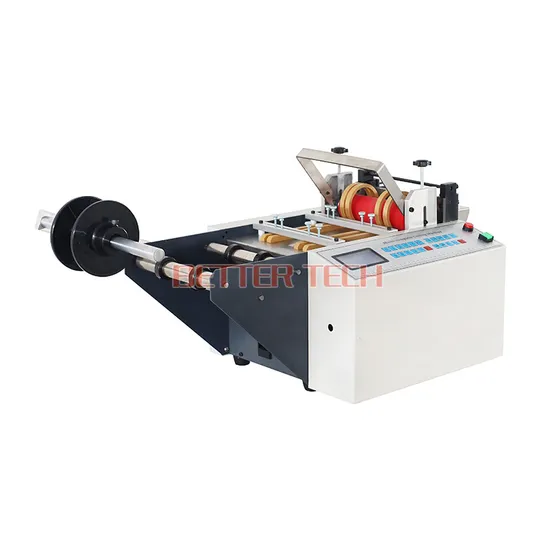

Automatic Roll to Sheet Cutting Machine Nickel Cotton Tape Cutting Machine Copper Sheet Cutting Machine

Product Description

Product Parameters

Model	JWD-B7-100S	JWD-B7-120S	JWD-B7-160S	JWD-B7-200S	JWD-B7-300S
Cutting length (mm)	1-99999mm	1-99999mm	1-99999mm	1-99999mm	1-99999mm
Cutting accuracy	0.1mm	0.1mm	0.1mm	0.1mm	0.1mm
Max cutting width	1-100mm	1-120mm	1-160mm	1-200mm	1-300mm
Cutting speed(p/min)	150	150	150	150	150
Knife max temperature	cold knife	cold knife	cold knife	cold knife	cold knife
Voltage/ frequency(V/Hz)	110V/220V 50/60	110V/220V 50/60	110V/220V 50/60	110V/220V 50/60	110V/220V 50/60
Rating Power(W)	500W	750W	1100W	1300W	1500W
Size(mm)	430×300×480	430×330×480	430×380×480	430×400×480	430×510×480
Weight(NW)	30kg	32kg	34kg	36kg	40kg

Product Description

Automatic cutting machine High efficiency and high accuracy: up to 150 times per minute;
Tolerance: +/- 0.5% of cutting length;
Cutting type: Cold cutting with a durable cold knife;
Suitable for cutting fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, electric cables, and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.
Automatic operation: It works automatically only by setting length and quantity;
Automatic stopper: It stops automatically if materials run out during operation;
Memory function: the previously set length, quantity and speed will not be erased even if power off & on;
We supply different models to fit your requests.


Application

Company Profile
Hefei Better Technology Co., Ltd., founded in 2008, is specialized in the production of laser welding & cutting machine metal, ultrasonic welding&cutting machine, cable winding tie machine, mute terminal stripping crimping machine, wire terminal welding machine and other machine. Products are widely used in construction, cloth, medical and other industries.
Packaging & Shipping
Certifications
FAQ
1) How long is the equipment warranty?A: We offer one year guaranteen for main parts, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client.2) What is the delivery lead-time?A:Normally 5-30 days upon receipt of your orders and its deposit.3) What is your payment terms?A: We accept L/C, T/T, D/P, Western Union and PayPal. Detailed can be negotiated.4) Can you customize for us? Can you OEM/ODM for us?A: Yes.
