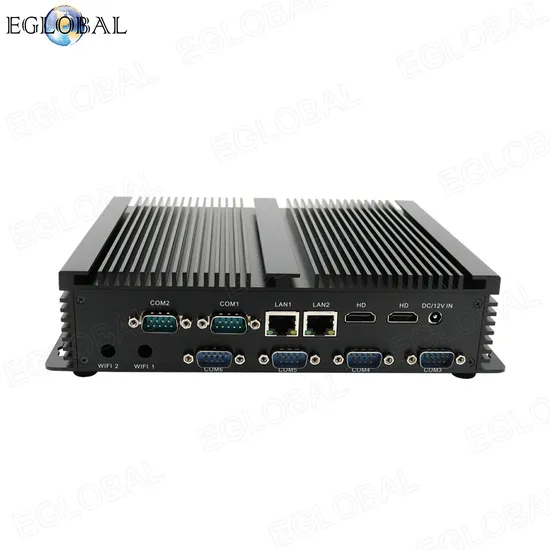

Eglobal Fanless Industrial PC Intel Core I5-4200u Barebone Mini Computer Desktop Kiosk Home Office

Product Description

Product DescriptionModel: GK-4200UL
CPU: Onboard Intel Core i5 4200U 1.6GHz Max 2.6GHz(Turbo boost Technology) Dual Core Four Threads
Model: GK-4500UL
CPU: Onboard Intel Core i7-4500U 1.8GHz Max 3.0MHz(Turbo boost Technology) Dual Core Four Threads
Product Highlight:- 2 Intel Gigabit RJ45 LAN, 2 HDMI display output and 6 RS232 COM ports.
- One embedded SIM card slot for 3G/4G Module for option.
- Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production craft on outside design.
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
- Low consumption TDP only 15W and can be mounted on the wall.
- Cost saving, save more than 50% hardware cost by comparing with other reliable brand computers.
- Multiple working modes: Support PXE and call on function automatically, it's a high-end small computer.

Basic Information
CPU	Intel Core i3-4010U /Intel Core i5-4200u / Intel Core i7-4500u
TDP	15W
Motherboard	170 x 120mm customized size
BIOS	AMI BIOS, ACPI supported, Support call on function automatically
Chipset	Intel QS77 Express High Speed Chipset
Memory Specifications
Memory Types	1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L 1333/1600, LPDDR3 1333/1600
OS	Windows 7/Windows 8/Windows 10/Linux
PXE	YES
Audio	ALC892 HIFI sound chip, 6-channel
Network	Onboard Intel i225-V 2.5G Network Connection
Processor Graphics	Intel® HD Graphics 4400
Wi-Fi:
Module	1 x mini PCIE-half port for Wi-Fi/3G/4G module
Antenna	2 x inner RF cables and 2 x external antennas
Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 12V DC In
LED	1x LED
USB	4 x USB2.0, 4 x USB3.0
Display	2 x HDMI 1.4
LAN	2 x RJ45 Giga LAN
COM	6 x RS232 COM
Audio	1 x MIC, 1 x SPK
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD
SATA	1 x SATA3.0 slot for SATA HDD or SSD
Product Dimension & Details:
Case Material	Black aluminum alloy
Dimension	PC size 234*150*50mm
	Package size 340*280*90mm
Weight	Net 1.8kg, Gross 2.7kg
Mounting	4 mounting holes one the case baseplate
Functions	Hyper-Threading, Virtualization technology, 64 bit computing
Cooling Mode	Fanless
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,
Optional	Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
Power and Working Environment
Input	100-240V AC/50-60Hz
Output	DC +12V~+19V, recommend 12V/5A
Operating Temperature	0°C/+70°C
Storage Temperature	-20°C/+80°C
Relative Humidity	0%~90% @30°C(non-condensing)

Detailed Photos
Installation Instructions
Application
Packaging & Shipping
Company ProfileAbout Us
Eglobal Technology Co Ltd(HK Company), established in 2009 in Hongkong, is a high-tech company in line with latest computer technical, is also a professional manufacturer and exporter that is concerned with the design, development and production of Mini PCs. At the beginning of our company, we devote into thin client pc station, in 2011 we expand our business field into Mini PCs development and supplying, especially fanless system without cooling fan.
We are located in Shenzhen City, Guangdong Province, with high-speed developed economy, preferential policies local government support and convenient transportation access. And with our deeply-accumulated experience and knowledge of oversea marketing sales team in Eglobal international trade department and 7 technical support team with 10 years computer support experience we wish to become one of your best supplier.
We create own brand EGLOBAL with high quailty, competitive price, excellent sales team and nice after-sales support, quickly get big worldwide market, market includes America, Asia, Africa and some European countries. In 2016, EGLOBAL as Gold Sellers is Top-Quality Brands on AliEx-press, our Sales ranked eighth in Computer & Office catalog, second only to Sam-sung. Since now a monthly sales reached USD200000 by the official store here.
Our Advantages
After Sales Service
About Shipping
We send to the Buyer's address specified on your order information. Please check your address/city/ postcode, making sure it's matched with your shipping address.We can't control the delivery time because it is processed by a third-party service. If the parcel has not arrived within the expected time, please contact us, we will extend the delivery date before opening the dispute.Normally we ship for free by faster delivery mode such as DHL, EMS, FedEx, our express agent special line, etc. It depends on different countries and different cases. But for those remote areas, we have to ship for free by registered postal mail, it will be slower than EMS, DHL, FedEx, etc. You can also add extra fees for DHL, EMS, FedEx, etc. faster shipment ways, thanks for understanding. All goods will be packed well to make sure they arrive in high condition.About TaxNormally we declare items as "MINI PC CASE" or "TV BOX" with value $20-$100, the Buyers are fully responsible for paying fees involving such as dispatching fees, storage costs, brokerage, taxes or VAT, etc.If you have a special requirement of the value, please leave a message to us when you place the order.The Buyer refuses to receive the goods due to the CUSTOMS TAX, the Buyer needs to be fully responsible for the freight back and forth. Thank you for your cooperation.About Warranty & Return Policy
We provide the 3-year product warranty, service is completely reliable and professional technical team. Class product quality, regardless of the current line, the product line marketed under the failure rate is very low, less than one percent failure rates. In case you encounter repair, you can contact us, send the product back to the company or our physical store. 3 years later, we still provide service for all users, and fees charged parts, maintenance free for life.
EGLOBAL committed to the sale of goods in line with the requirements of the case to return from the date of sale (the actual receipt date) 10 days can return, exchange within 30 days.

Return Category	Detailed Description	Support 10 days (inclusive) Return	Support 10 days (inclusive) Replacement	About Shipping Charges	Remark
Quality problem	Issue valid detection proof	YES	YES	EGLOBAL	Provide an effective inspection certification
Damaged goods, less pieces	Exist the appearance of deformation, damage, fewer pieces(include fewer pieces missing main parts or accessories)	YES	YES	EGLOBAL	Provide third-party logistic valid documents(Proving the existance of trade that is damaged, or few pieces when receipt of goods)
Don't match the color, size or type of goods	Receipt of goods and orders for goods color, size, model, etc. inconsistencies	YES	YES	EGLOBAL	Compare image physical with received merchandise
Consumers subjective reasons	Return for personal reasons( not like, don't want it)	YES	YES	Buyer	Not affect the secondary sales

FAQ
Q: What Operating System is Mini PC I buy here?
A: Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc. Please inform us which language you want to install. Other systems we can install for free like Linux, Ubuntu etc if you need. The Seller is NOT responsible and makes no compensation for trial OEM operating system.
Q: What brand of Ram, SSD and HDD I buy here?
A: Accessories as Ram, SSD, HDD, we use famous brand: Sam-sung, Mi-cron, San-Disk, To-shiba, Hy-nix, Cru-cial, Li-teon, King-fast, King-spec, Phi-sonetc, which brand we use depends on our test and our stock. Welcome to leave messages or negotiate with our Sales about the brand you need before shipment.
Q: Can I get some samples?
A: We are honored to offer you samples for quality check, MOQ is 1 set, welcome to order via the link directly. We also provide free OEM service for your sample order, just feel free to contact our Sales here.
Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very begining of manufacturing and 3 Years Warranty.
Q: How to solve the product problem?
A: Welcome to contact our Sales about any problems, they will provide nice service to each customer directly.
Q: Could you please offer us good price?
A: Sure, we will satisfy your needs according to your order quantity. Welcome to send an inquiry here or contact our Sales about your bulk order. And we will provide more OEM/ODM service as per your requests.
