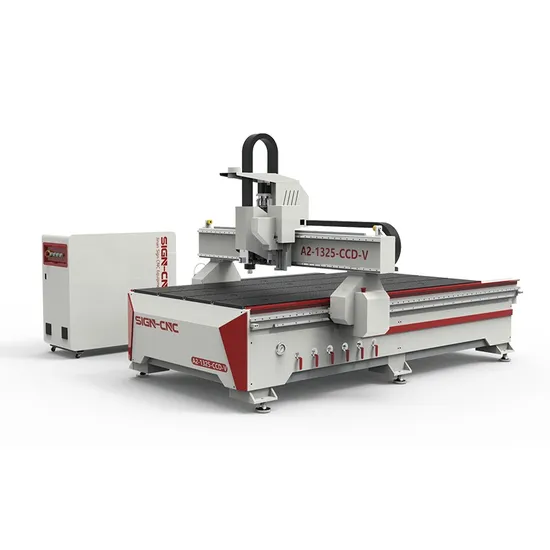

Mtc CNC Router Sign New Model Multi-Function CNC Machine with Two Spindle and CCD Camera High Cutting Speed for Billboard Making
Basic Info.
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
220V
Model
A2-1325-CCD-V
Size
1300*2500mm
Spindle Height
300mm
Table Type
T-Slot Table
Max. Power Consumption
2.0kw
Max. Working Speed
25000mm/Min
Spindle Power
9.0kw Hqd
Spindle Speed
0-24000rpm
Drive Motors
AC Servo Motor
Control System
Xingduowei
Reducer
Japanese Shimpo Planetary Reducer
Transport Package
Wooden Package
Specification
13 cubic meter package
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year
Packaging & Delivery
Package Size
3200.00cm * 2280.00cm * 1850.00cm
Package Gross Weight
1100.000kg
Product Description
MTC CNC router 2024 new model hot seller with two spindle multi-function for advertise board making with automatic positioning camera, precise cuttingSpecification
| Model | A2-1325-CCD-V |
| X, Y Working size | 1300x2500mm |
| Z feed Height | 300mm |
| Table Surface | T-slot table |
| X, Y Structure | Rack and Pinion Drive, 25mm Linear Square Guide Rail |
| Z Structure | 25mm Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 9.0KW Air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | AC servo motor and driver |
| Working Voltage: | AC220V/50/60Hz |
| Command Language | G code |
| Control System | Xingduowei |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
| Optional Parts | Rotary system, Vacuum table |
