ISO 132 Rubber DEMATTIA Flex-Cracking Tester

Product Description

Product Description

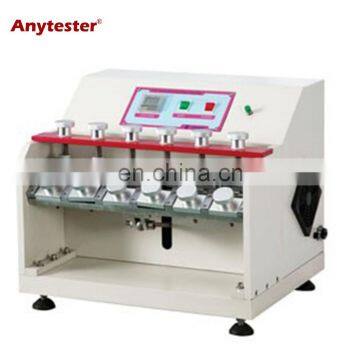

Product DescriptionHY7600B DEMATTIA Flex-Cracking Tester is used to determine the ability of soft rubbers, leathers, artificial leathers and EVA soles and other materials to resist dynamic fatigue. The specimen is mounted to the movable clamps and flexed constantly to observe the resistance to crack, in other words, to measure its flex-endurance. StandardJIS K6301ASTM D813, D430BS 903 ISO 132GB/T 13934, 20991EN ISO 20344, Note: this DEMATTIA Flex-cracking Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us. Features1. Full touch screen control, large-screen display2. Chinese (English) subtitles, easy to understand, does not appear to misuse.3. Industrial PLC control, anti-jamming performance, fast data transfer.4. Special inching function, more convenient operation.5. Related parameters are opening up the instrument to meet the testing requirements of different standards. SpecificationModelHY7600B -IDEMATTIA Flex-Cracking Tester HY7600B -IIDEMATTIA Flex-Cracking Tester Fixture group154*25±1*6.3±0.15mm108±0.5*70±0.5mmReciprocating stroke57mm44mmMax distance between fixture75mm57mmTest speed300±10cpm340~400±10cpmCounterLCD 0~999999Test speed100 rpmDimension35*60*75cmWeight78kgPowerAC 220V 50HZ 0.75KW
