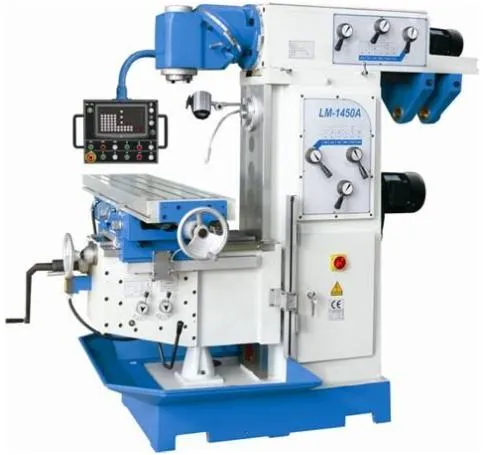

Heavy-Duty High Precision Milling Machine (LM1450A)
| US$6,000.00-100,000.00 | 1 UNIT (MOQ) |
Basic Info.
Model NO.
LM1450A
Type
Worktable Milling Machine
Object
Gear
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1630X360mm
Spindle Taper
ISO50h
Max End Milling
125 (V)100(H)
Table Travel
1000*320*405
T-Slot(Number-Width-Distance)(Mm)
3/18/80
Main Motor(Kw)
4
Distance From Spindle to Table(Mm)
150-600
Distance From Spindle to Column(Mm)
760
Overall Dimensions(Mm)
2000X2000X2250
N.W/G.W (Kg)
2650/2850
Transport Package
Wooden Case, No Need Fumigation, Plastic Cover
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
300 Sets/Month
Product Description
Heavy-Duty High Precision Milling Machine (LM1450A)Introduction:
1. Main parts produced at TAIWAN production base.
2. Machine adopt GERMANY technology, main technology guided by GERMANY engineer.
3. Providing machine as OEM form for GERMANY Company as long term.
4. Full production is supervised by TAIWAN engineers.
5. CE Certificated, machine produced strictly according to CHINA National Standard and CE Safety Standard.
Features:
1. High Quality, high precision, high stability.
2. Beautiful appearances.
3. Guide way fully closed by Protection Shield.
4. Spindle Parts made by TAIWAN SHUENN-JIA, assembly in China Mainland.
5. CHINA Top Class high quality Spindle Motor, itself have Frequency Conversion Function Machining Center use Servo Motor.
6...Special Fireproofing Circuit Board and Groove. 7...CE Safety Standard Electric Cabinet Power Switch.
8. TAIWAN Funnel Type Tool Magazine(12pcs)(for Machining Center)
Standard accessories:
1. Mill chuck
2. Machine vice
3. Spanner
4. Inner -hexagonal spanner
5. Horizontal Milling Hilt
6. Draw Bar
Optional accessories:
1. FW125 universal dividing head
2. TS320 rotary table
3. Slotting head
4. Clamping Kit
5. Digital Read Out
| Heavy-Duty High Precision Milling Machine | LM1450A |
| Spindle taper | ISO50 |
| Difference from spindle axis to guideway(mm) | 505 |
| Horizontal axis middle height | 0-480 |
| Table size | 1630*360 |
| Table travel | 1000*320*405 |
| Main motor | 4kw |
| Feeding motor | 1.5kw |
| Spindle speed | 60-1800 |
| Overall dimensions(mm) | 2000*2000*2250 |
| N.W/G.W (kg) | 2650/2850 |
