12V18ah/20hr Sound Equipment UPS Lead Acid Battery

Product Description

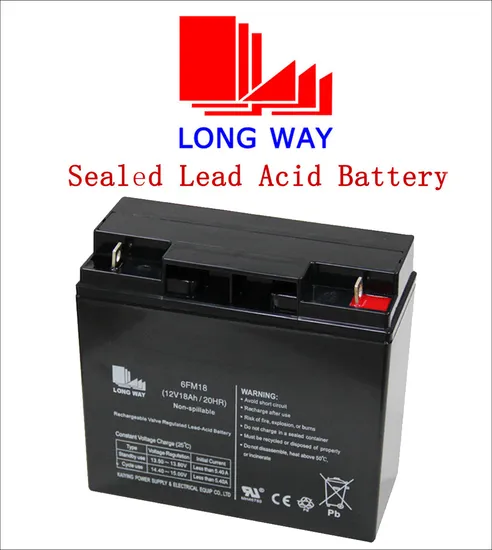

LONGWAY sound equipment ups Lead Acid Battery 12V18ah/20hr
12V18ah/20hr Sound Equipment UPS Lead Acid Battery
LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
6V - 1.3Ah to 14Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 2500Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.
LONGWAY® Standard battery is design for a general purpose by KaiYing
Power. 6FM18 is a general purpose battery up to 5 years in star service or more than 260 cycles at 100% discharge in cycle service. As with all
LONGWAY® batteries, all are rechargeable highly efficient, leak proof and
maintenance free.
Specifications:

Cells per Unit	6
Normal Voltage	12V
Capacity	18Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx.(5±3%)kg (5.71lbs)
Maximum Discharge Current	180A(5sec)
Internal Resistance	Approx.14mΩ full charged @25ºC
Operating Temperature Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating Temperature Range	25ºC±3ºC(77ºF±5ºF)
Float Charging Voltage	13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current	5.4A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	F4/F8
Container Material	ABS(UL94-HB) *Flammability resistance of (UL94-V0) can be available upon request

Type: 12serise battery Reliably sealed construction
Long service life, Maintenance free
Model: Lead-Acid Battery 6FM18(12V18AH/20HR)
Size: 181*77*167 (total height: 167) mm
Terminal: NB
Weight: 5.4Kg
Packing Qty: 4 PCS/CTN
3, 200 PCS/Container
Lead-time: 35 days for one container
General Features
Stable quality&high reliability
Sealed construction
Environmentally friendly
Maintenance-free operation
Low pressure venting system
Heavy duty grid
Low self discharge
UL component recognition(MH46789)
Applications:
Alarm systems, Cable television, communications equipment, control equipment,
Computers, electronic cash registers, electric test equipment,
Electric powered bicycle and wheel chair,
Emergency lighting systems, fire&security, geophysical equipment,
Marine equipment, medical equipment,
Micro processor based office machines, portable cine&video lights,
Power tools, solar powered systems,
Telecommunications systems, television&video recorders, toys,
Uninterruptible power supplies, vending machines;
Welcome to visit our website
1HTTP: //longwaybattery. En. Made-in-China. Com/
For more information, pls kindly contact us.

Standby LONGWAY Standard Series batteries
Battery Model	Nominal Voltage(V)	Nominal Capacity (AH)	Length		Width		Height		Total Height		Weight(5%)		Terminal
			In	mm	In	mm	In	mm	In	mm	Pound	Kg	Type	Position
6FM1.2	12	1.2	3.86	98	1.71	43.5	2.05	52	2.28	58	1.26	0.57	F1	E
6FM2.2	12	2.2	2.78	70.5	1.87	47.5	3.90	99	4.09	104	1.70	0.77	F1	C
6FM2.4	12	2.4	7.01	178	1.38	35	2.40	61	2.64	67	2.14	0.97	F1	C
6FM2.6	12	2.6	2.78	70.5	1.87	47.5	3.90	99	4.09	104	1.83	0.83	F1	C
6FM3.2	12	3.2	5.28	134	2.64	67	2.34	59.5	2.60	66	2.80	1.27	F1/F2	E
6FM4	12	4	3.54	90	2.76	70	3.98	101	4.21	107	3.15	1.43	F1/F2	C
6FM4.5	12	4.5	3.54	90	2.76	70	3.98	101	4.21	107	3.26	1.48		C
6FM5	12	5	3.54	90	2.76	70	3.98	101	4.21	107	3.57	1.62	F1/F2	C
6FM5A	12	5	5.51	140	1.89	48	4.13	105	4.13	105	3.66	1.66	F2+F1-	C
6FM5B	12	5	5.94	151	2.01	51	3.66	93	3.90	99	3.66	1.66	F1	F
6FM5.5	12	5.5	3.54	90	2.76	70	3.98	101	4.21	107	3.86	1.75	F1/F2	C
6FM5.5A	12	5.5	5.51	140	1.89	48	4.13	105	4.13	105	3.86	1.75	F2+F1-	C
6FM5.5B	12	5.5	5.94	151	2.01	51	3.66	93	3.90	99	3.66	1.66	F1	F
6FM6	12	6	5.94	151	2.56	65	3.70	94	3.94	100	4.30	1.95	F1/F2	F
6FM7	12	7	5.94	151	2.56	65	3.70	94	3.94	100	4.63	2.10	F1/F2	F
6FM7.2	12	7.2	5.94	151	2.56	65	3.70	94	3.94	100	4.74	2.15	F1/F2	F
6FM7.5	12	7.5	5.94	151	2.56	65	3.70	94	3.94	100	4.85	2.20	F1/F2	F
6FM8	12	8	5.94	151	2.56	65	3.70	94	3.94	100	5.07	2.30	F1/F2	F
6FM8E	12	8	5.94	151	2.56	65	3.70	94	3.94	100	5.07	2.30	F1/F2	F
6FM9	12	9	5.94	151	2.56	65	3.70	94	3.94	100	5.73	2.60	F1/F2	F
6FM10A	12	10	5.94	151	2.56	65	4.37	111	4.61	117	6.61	3.00	F2	F
6FM10B	12	10	5.94	151	2.56	65	4.37	111	4.61	117	6.39	2.90	F2	F
6FM10	12	10	5.94	151	3.86	98	3.74	95	3.98	101	6.72	3.05	F2	F
6FM11	12	11	7.13	134	3.15	80	6.34	161	6.50	165	10.10	4.58	F3	C
6FM12	12	12	7.13	151	3.86	98	3.74	95	3.98	101	7.17	3.25	F2	F
6FM14	12	14	7.13	151	3.86	98	3.74	95	3.98	101	8.27	3.75	F2	F
6FM15	12	15	7.13	181	3.03	77	6.57	167	6.57	167	10.14	4.60	F4	D
6FM17	12	17	7.13	181	3.03	77	6.57	167	6.57	167	11.02	5.00	F4	D
6FM18	12	18	7.13	181	3.03	77	6.57	167	6.57	167	11.90	5.40	F4	D
6FM18C	12	18	7.13	181	3.03	77	6.57	167	6.57	167	11.24	5.10	F4	D
6FM20	12	20	7.13	181	3.03	77	6.57	167	6.57	167	12.35	5.60	F4	D
6FM24	12	24	6.89	175	6.54	166	4.96	126	4.96	126	16.76	7.60	F4/F8	D
6FM26	12	26	6.89	175	6.54	166	4.96	126	4.96	126	18.96	8.60	F4/F8	D
6FM28	12	28	6.89	175	6.54	166	4.96	126	4.96	126	19.84	9.00	F4/F8	D
6FM28A	12	28	6.50	165	4.96	126	6.89	175	7.01	178	18.74	8.50	F14/F9	D
6FM30	12	30	7.68	195	5.12	130	6.34	161	6.54	166	20.94	9.50	F9/F15	C
6FM33	12	33	7.68	195	5.12	130	6.34	161	6.54	166	22.49	10.20	F9	C
6FM35	12	35	7.68	195	5.12	130	6.34	161	6.54	166	23.15	10.50	F9	C
6FM38	12	38	7.80	198	6.54	166	6.69	170	6.69	170	28.66	13.00	F9	D
6FM40	12	40	7.80	198	6.54	166	6.69	170	6.69	170	29.76	13.50	F9	D
6FM45	12	45	7.80	198	6.54	166	6.69	170	6.69	170	30.86	14.00	F9	D
6FM50	12	50	9.02	229	5.43	138	8.19	208	8.39	213	37.04	16.80	F9	C
6FM55	12	55	9.02	229	5.43	138	8.19	208	8.39	213	38.58	17.50	F9	C
6FM60	12	60	10.20	259	6.65	169	8.19	208	8.39	213	47.40	21.50	F9	C
6FM65	12	65	13.78	350	6.50	165	7.17	182	7.17	182	46.30	21.00	F6/F9	C
6FM70	12	70	10.20	259	6.65	169	8.19	208	8.39	213	47.40	21.50	F9	C
6FM75	12	75	10.20	259	6.65	169	8.19	208	8.39	213	50.71	23.00	F9	C
6FM80B	12	80	10.20	259	6.65	169	8.19	208	8.39	213	51.81	23.50	F9	C
6FM80	12	80	12.09	307	6.57	167	8.27	210	8.46	215	55.12	25.00	F9	C
6FM90	12	90	12.09	307	6.57	167	8.19	208	8.39	213	58.42	26.50	F9	C
6FM95	12	95	12.09	307	6.57	167	8.19	208	8.39	213	59.52	27.00	F9	C
6FM100H	12	100	12.99	330	6.81	173	8.62	219	8.82	224	66.14	30.00	F11	C
6FM100E	12	100	12.99	330	6.81	173	8.62	219	8.82	224	65.04	29.50	F11	C
6FM120	12	120	15.94	405	6.81	173	9.33	237	9.33	237	77.16	35.00	F11	C
6FM120E	12	120	12.99	330	6.81	173	8.62	219	8.82	224	68.34	31.00	F11	C
6FM134	12	134	13.43	341	6.81	173	11.14	283	11.34	288	91.49	41.50	F10	C
6FM150	12	150	19.02	483	6.69	170	9.49	241	9.49	241	97.00	44	F11	C
6FM160	12	160	13.43	341	6.81	173	11.14	283	11.34	288	99.21	45	F10	C
6FM200	12	200	20.55	522	9.45	240	8.62	219	8.82	224	132.28	60	F11	E
6FM200E	12	200	20.55	522	9.45	240	8.62	219	8.82	224	134.48	61	F11	E
6FM230	12	230	20.51	521	10.59	269	7.99	203	8.19	208	145.51	66	F11	F
6FM250	12	250	20.47	520	10.59	269	8.66	220	9.65	245	154.32	70	F11	E
