Workshop Piston Air Compressor Energy Saving Industrial Compressors Head 5.5kw 10bar (New Product 2021)
| US$50.00-150.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
V90I
Structure Type
Open Type
Compress Level
Single-Stage
After Warranty Service
Video Support, Online Support, Spare Parts
Warranty
1 Year (Overall Unit & Core Component)
Power
5.5kw/7.5HP
Capacity
0.72m3/Min/25cfm
Max Exhaust Pressure(MPa/Psi)
1MPa/145psi
Working Pressure
10 Bar
Speed(Rpm)
950
Pulley Size
460mm*75mm
Weight
66kg
Power Source
AC Power
Core Components
Pump
Certification
CE/ISO
Related Reports
Video Outgoing-Inspection& Machinery Test Report
Configuration
Portable
Type
Piston
Transport Package
Stander Wooden Case
Specification
535mm*410mm*430mm
Trademark
Trenty
Origin
Jiangsu, China
HS Code
8414909090
Production Capacity
50000pieces/Year
Product Description

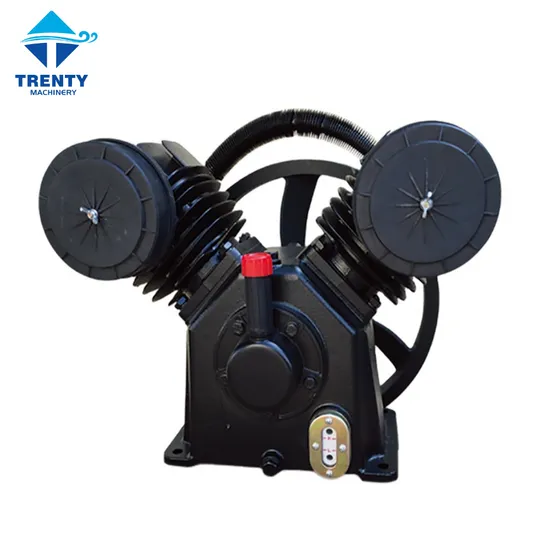

V90I 1.0Mpa 7.5HP 5.5KW 145PSI piston air compressor pump headProduct Description
| Model | V90I | ||
| Motor Power(KW) | 5.5 | ||
| Motor Power(HP) | 7.5 | ||
| Capacity (M³/min/CFM) | 0.72/25 | ||
| Max Exhaust Pressure(Mpa/PSI) | 1/145 | ||
| Speed(RPM) | 950 | ||
| Pump Dimension (mm) | Length | 535 | |
| Width | 410 | ||
| Height | 430 | ||
| Pulley Size(mm) | 460*75 | ||
| Pump weight (kg) | 66 | ||
| Model | Max ExhaustPressure | Capacity | Motor Power | Speed | |||
| MPA | PSI | m³/min | CFM | KW | HP | RPM | |
| TC1065A | 0.8 | 113 | 0.08 | 2.8 | 1.5 | 1 | 800 |
| C3 | 1 | 145 | 0.17 | 6 | 1.5 | 2 | 700 |
| C5 | 1 | 145 | 0.25 | 9 | 2.2 | 3 | 800 |
| V80I | 1 | 145 | 0.4 | 14 | 3 | 4 | 820 |
| W80I | 1 | 145 | 0.52 | 18 | 4 | 5.4 | 780 |
| V90I | 1 | 145 | 0.72 | 25 | 5.5 | 7.5 | 950 |
| W90I | 1 | 145 | 1 | 35 | 7.5 | 10 | 900 |
| W95I | 1 | 145 | 1.5 | 54 | 11 | 15 | 1180 |
| W115I | 1 | 145 | 2 | 71 | 15 | 20 | 1000 |
| W80II | 1.25 | 178 | 0.4 | 14 | 4 | 5.4 | 850 |
| V95II | 1.4 | 200 | 0.38 | 13 | 4 | 5.4 | 920 |
| W90II | 1.4 | 200 | 0.6 | 21 | 5.5 | 7.5 | 900 |
| W95II | 1.25 | 178 | 0.8 | 28 | 7.5 | 10 | 750 |
| W115IIA | 1.25 | 178 | 1.4 | 50 | 11 | 15 | 860 |
| W115IIB | 1.4 | 200 | 1.2 | 42 | 11 | 15 | 800 |
