Low Cost Wood Shaving Machine Wood Wool Making Machine with High Profit

Product Description

Product Description

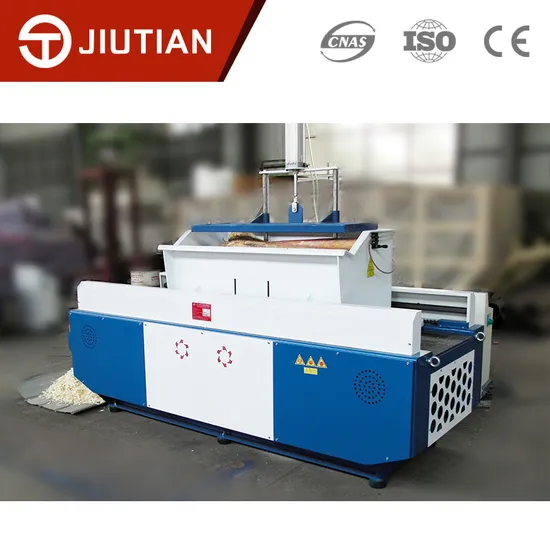

The wood shaving machine produced by our company is a new product that adopts new technology and then improves it according to the needs of wood shavings and the current status of wood. This wood shaving machine can process all kinds of wood (such as sticks, branches, logs, furniture scraps from furniture factories, waste wood branches, etc.) into batches of thin wood shavings with uniform thickness. The wood enters the machine through the feed port and is sliced by the blade inside the machine to punch the shavings. The size and thickness of the shavings are even, which is not much different from the wood shavings produced by the wood factory, it also saves time and labor. The use of wood shavings: it can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.
Zhengzhou Jiutian Machinery is a professional manufacturer of wood shaving machines. This poplar shaving machine can process finished wood or waste wood with a length of 45CM to 140CM. The product structure is advanced, the energy consumption is low, the environment protection is efficient, and you can adjust the shavings to different sizes according to your different uses. The produced shavings have high quality, the blade has high wear resistance and long service life. The hydraulic power unit imported from Germany is used to ensure the continuous work and stability of the hydraulic tie rod.
Working Principle
The automatic wood shaving machine production line is an efficient wood processing equipment system mainly used to process wood into wood shavings. The following are the main components and workflow of a general shaving machine automatic production line:
1. Raw material input: First, the wood raw materials to be processed need to be transported to the starting end of the production line through conveying equipment (such as belt conveyors or chain conveyors).
2. Shaving machine: The shaving machine is the core equipment of the production line. Its function is to cut wood into specified shaving sizes. Modern shaving machines usually use high-speed rotating cutters for cutting, which has high efficiency and good shaving quality.
3. Screening system: The cut shavings will be graded through the screening system to separate out the shavings that do not meet the specifications and return them to the shaving machine for re-processing.
4. Magnetic separation device: In order to remove metal impurities that may be mixed in the shavings, a magnetic separation device is usually installed in the production line.
5. Conveying and packaging: Qualified shavings that have been screened and magnetically separated will be sent to the packaging area by conveying equipment, packaged by an automatic baler, and then stored in the warehouse or directly transported to downstream users.
6. Control system: The entire production line is monitored and operated by an advanced control system, which can realize automated production, improve production efficiency, and ensure the safety and stability of the production process.
In general, the automatic shaving machine production line is an efficient production equipment that integrates feeding, cutting, screening, iron removal, packaging and other links. It can meet the needs of different users for the quality and output of shaving products. It can also be configured with drying Machine dry.
Applications
The wood shaving machine can process logs, branches, and boards edge into shavings. The shavings produced are the same as the shavings produced by the furniture factory. The fully automatic feeding equipment greatly improves the production speed and saves time and labor.
It can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.
Product Features
1. No need for civil engineering;
2. Electrical control systems are imported from Europe;
3. Four-axis planing (increasing shavings yield);
4. The size and thickness of the shavings can be adjusted arbitrarily (to meet the needs of different markets);
5. Adjust the number of compressions according to the number of materials to achieve energy saving and emission reduction;
6. No other wearing parts except knives (supporting sharpener equipment, knives can be used for many times);
7. The transmission part adopts hydraulic technology to ensure the stability of the equipment operation and avoid crashes;
8. The overall structure is made by laser cutting and CNC machining center to ensure the interchangeability of machine parts;
9. The high degree of automation, equipped with an automatic feeding system, to achieve uninterrupted feeding, greatly reducing labor costs.
Product Parameters

Model	JTWS1460-2	JTWS1460-4	JTWS1490-4	JTWS2712-4
Feed size	140*60cm	140*60cm	140*90cm	270*120cm
Wet material output	500-3000kg/h(Capacity can be customized)
Number of cutter heads	Customized according to the size of shavings
Weight	2400kg	3000kg	6800kg	8000kg
Dimensions	330*155*135cm	380*155*135cm	600*220*210cm	560*200*200cm
Note: The price above is just for reference, please feel free to contact us if you want to know more about different models or production lines. We can offer free customized proposals.

Related Products
The shaving machine is equipped with products on the production line: biomass dryer, if you need to dry shavings, you can choose our biomass dryer equipment.
Company Profile
Zhengzhou Jiutian Technology Machinery Co., Ltd. is located in Zhengzhou city, Henan province, our machine has exported to more than 30 countries and regions and all of our products are approved CE quality inspection certificates.
FAQ
Pre-sale services:
Act as a good advisor and assistant of clients; enable them to get rich and competitive
from the returns of their investment.
1) Select a suitable equipment model.
2) Design and manufacture products according to clients' special requirements.
3) Train technical personnel for clients.
4) Professional suggestion for the customer.
Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
1)take photos(including raw material, semi-products, final products, and loading products)
1) Pre-check and accept products ahead of delivery.
2) Prepare all clearance documents, so that the customer clearance smoothly.
After-sale services:
Provide considerate services to minimize clients' worries.
1) Provide civil engineering drawings of the equipment.
2) Free training(including installation, maintenance) for every customer.
3) Install and debug the equipment, ensure the dryer running smoothly.
4) Examine the equipment regularly.
5) Take the initiative to eliminate the troubles rapidly at the site.
6) Distribute the guarantee fittings door-to-door.
7) Provide technical exchange and support.
If you are interested in our product, or if you have any questions, please feel free to contact us. We will reply to you within 24 hours!
