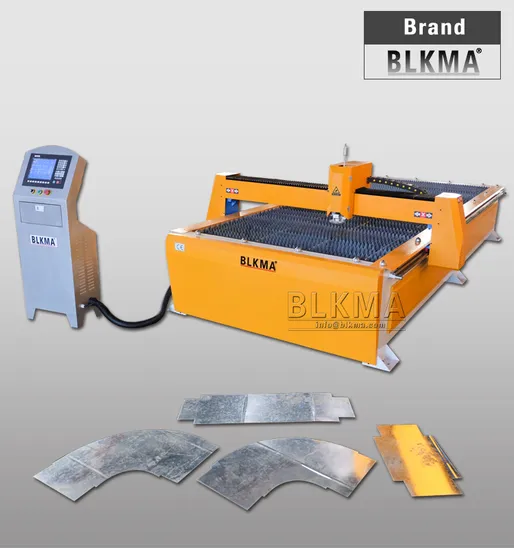

Automatic Square HVAC Elbow Sheet Metal CNC Plasma Cutting Machine

Product Description

automatic square hvac elbow sheet metal cnc plasma cutting machine
Function:
It's mainly for automatically lofting and cutting the deformed workpiece.You can select a drawing
from the new version of CAM-DUCT and input dimensions and choose a way of connection,then
the software will start calculating,composing,jacking and cutting automatically according to your
requirements.
Performance Features:
1.Vertical control cabinet with 10 inch touch screen(15 inch screen is optional).
2.New version of CAM-DUCT software from Hypertherm of United States and encrypting Chinese
version.
3.Original generator of Hypertherm of United States or homemade generator of Huayuan (economy
version).
Main technical Parameters:

Model	Working range (mm)	Sheet thickness (mm)	Power (kw)	Dimension L*W*H (mm)	Weight (kg)
BA-1300*3000	1300*3000	0.4-6	10	3700*2150*1400	900
BA-1300*4000	1300*4000	0.4-6	10	4700*2150*1400	900
BA-1500*4000	1500*4000	0.4-6	10	4700*2350*1400	1000
BA-1500*5000	1500*5000	0.4-6	10	5700*2350*1400	1100

Detailed Images:
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our
factory for learning operation. Besides, there are detailed installation and operating instruction
attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance
before the shipment.
4. OEM is available?
Yes.
5. What's your package?
There're two package methods. One method is that machines will be fixed directly in a whole
container without wooden box when total machines dimensions need a container, in this
situation, machines will be transported by FCL (full container load). Another method is that
machines will be packaged with wooden box when total machines dimensions are small which
does not need a whole container, in this situation, machines will be transported by LCL (less
than container load).
Both of these two package methods are safe.
