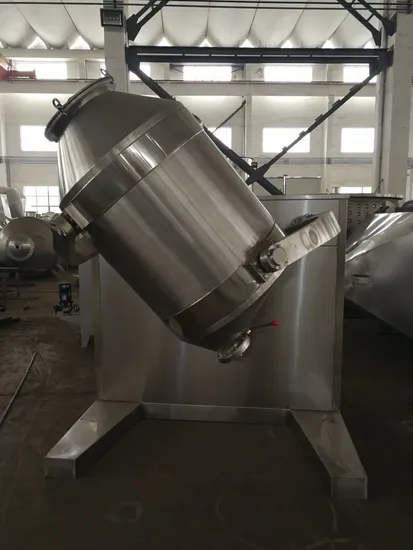

Product Description SYH Series Three-dimensional Motion Mixer
Effective blending and mixing is now an essential part in pharmaceutical industries. SYH three dimensional pharmaceutical blender can effectively ensure the quality of mixing materials. When it operates, with the mixing cylinder operating with multi-directional movement, various materials in the mixing process accelerated their mobility and diffusion. At the same time, it avoids the gravity segregation and accumulation phenomena caused by centrifugal force

Model	SYH-5	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000
Volume of mixing drum (L)	5	100	200	400	600	800	1000
Max loading volume (L)	4.25	85	170	340	510	680	850
Max loading weight (k)	5	80	150	200	300	400	500
Revolution speed of main shaft (r/min)	24	15	12	10	10	lO	10
Power of motor (kw)	0.37	2.2	3	4	5.5	7.5	11
Overall dimensions	600× 1000× 1000	i200× 1800× 1500	1300× 1600× 1500	1500× 2200× 1500	1850× 2500× 1650	1900× 2400× 2100	1950× 2500× 2400
Weight (kg)	150	500	750	1200	1500	1650	1800

PRODUCT INTRODUCTION Principle of work
During the period of operation, because the mixing drum has multi-directional actions of motion, it speeds up the fluid and diffused effect of raw material.Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in ordinary mixer and no dead corner. It can guarantee the best quality of mixed raw material. Structure: this machine consists of stand, transmission system,electric control system, multi-directional motion mechanism,mixing drum and so on. The mixing drum contacted with raw material is made of stainless steel. The inner and outer wall of drum is polished.
Features:
1. Pharmaceutical mixer has a unique driven shaft servo mechanism, so that the whole machine runs stably and reliably with low noise.
2. Three dimensional pharmaceutical blender is characteristic of short mixing time and good mixing effect with the evenness up to 99.9%.
3. The inner wall of the barrel of pharmaceutical mixer is finely polished, so there is no dead angle in it.
4. Both inside and outside of the cylinder is polished, which totally meets the GMP standard.

Application Application:
SYH three dimensional pharmaceutical blender is widely used in pharmaceutical, chemical, food, metallurgy, light industries and research institutes.
If you are interested in other types of our powder blender or food, flavouring, pharmaceutical, chemical, fertilizer, pesiticide etc blending machine, pls search in our website or directly contact us. COMPANY INFORMATION
