950~2150MHz 8 Satellite 8 Sat 47~862MHz 1 Terr. If 9*9*16 Cascade Multiswitch

Product Description

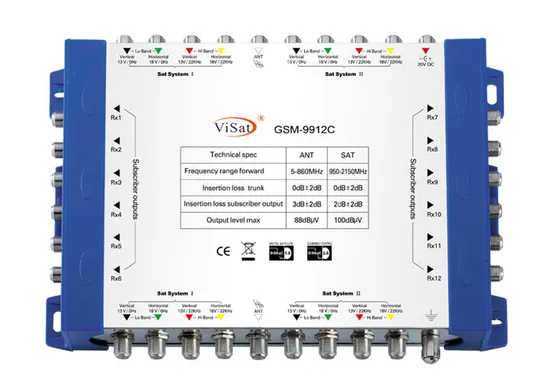

MODEL:MS912C			DESCRIPTION:9×9×12 Cascadable Multiswitch
Featrues:
8 satellite IF and 1 terrestrial TV inputs for 12 satellite receiver
8 satellite IF inputs selected by 13V,18V,22KHz and DisEqC 2.0 signal
Built-in amplifier
Low insertion loss, high isolation and return loss
Sheet metal housing with plastic holder
Design good for indoor usage
Specifications
Item		Specifications		Remark
Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs/outputs		8 SAT+1 Terr. / 8 SAT+1 Terr.		F connectors
Outputs/subscribers		12		F connectors
Thru Loss	Terr.	4dB
	SAT	4dB
TAP Loss	Terr.	2dB
	SAT	2dB
Return Loss	Terr.	10 dB
	SAT	10 dB
Stop band attenuation	Terr.	25 dB
	SAT	25 dB
Isolation	H-V	25 dB
	LNB-LNB	35 dB
	REC-REC	Terr.:26 dB SAT:30 dB
Terr. Output Level Max.		85dBμV@60dB IM3,EN50083-5
SAT Output Level Max.		100dBμV@35dB IM3,EN50083-3
Power supply		IN:90~264VAC OUT:18V 1.6A
Current Consumption from receiver		< 50mA
Switching Voltage		V:10~14.5V H:15.5~20V
Ambient temperature		-20~+50ºC
Dimensions (w,d,h)		320×1220×60		mm
