Multiplier for High Speed Biscuit Sandwiching Machine

Product Description

Product Description

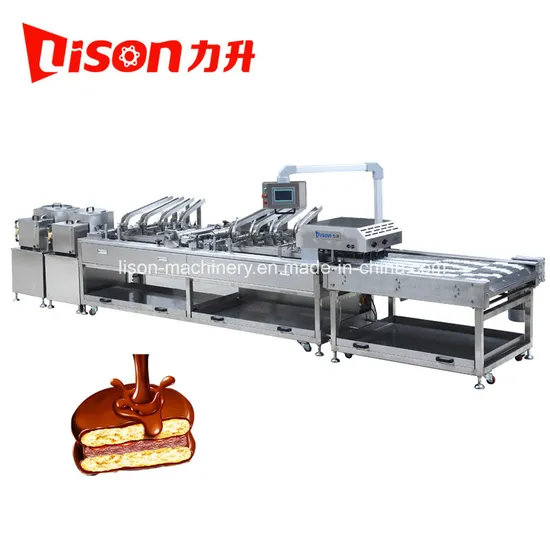

Four lane biscuit sandwiching machine with rows multiplier
It is suitable for producing round, rectangular, square and some irregular shaped biscuits. It is widely used to produce Cream, Fruit jam, Chocolate sandwich biscuits.

Product Parameter

Model	LSM421F
Total power	7kw
Voltage	220V/50Hz
Dimension	5610x3490x1720mm
Net weight	1000kg
Capacity	Max.2400pcs/min.
Biscuit size	Round:Φ40-70mm Square:L(40-70)xW(40-70)mm

Products Feature
1. Sandwich machine use servo motor drive, performance is more stable and more accurate positioning.
2. Photoelectric detection of biscuits, no biscuit no cream system.
3. Sanitary desigh with stainless steel for food contact parts, including cream stencil and interchange faster.
4. Select turning feeding device, across the production line design and saving space.
5. Equipped with waste collection system for easy to cleaning and maintain.
6. Every cream bucket with independent motor and reducer.
Detailed Images

	Machine Parts Name: Cream Stencil Material: Stainless steel Original: China -- Handle different shapes and sized of biscuits -- Interchange faster
Machine Parts Name: Servo Motor Brand: Delta Original: China -- More accurate positioning and more stable performance
	Machine Parts Name: Rows Mutiplier Original: China -- Can be connect with chocolate enrobing machine
Machine Parts Name: Cream Bucket Material: Stainless steel Original: China -- Can cleaning while finish working separately -- Independent motor and reducer

Our Service

Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory.

After-Sales Service * Training how to instal and use the machine. * Engineers availble to service machinery over seas.

Packing and Shipping
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipment: Within 40 working days from the date of receipt the down payment.
Usually by sea, but can also according to customer requirements.
Our Company
Foshan Lison Machinery Co., Limited
Foshan Lison Machinery Co., Limited is a company focus on biscuit machine and packaging machine research, manufacture, selling and after-sales service.
Our product including: Biscuit production line from A to Z, Biscuit sandwiching machine with flow packing machine, Biscuit sandwiching machine with on-edge packaging machine, Biscuit sandwiching machine with rows multiplier, Chocolate depositing machine.
We had exported our products to Europe, America, Middle-East, Africa and Asia countries.
FAQ
1.Q: Are you manufacturer?
A: Yes, we are a biscuit sandwiching machine manufacturer in China.
2.Q: How is the payment?
A: We accept 40% T/T deposit before production and 60% T/T balance before shipment.
And L/C.
3.Q: How long is your guarantee time?
A: We have a guarantee period of 15 months from the date of shipment.
4.Q: What is the mini order quantity?
A: One set.
5.Q: What information does the quotation require?
A: --What kind of biscuit do you make? Pictures of your biscuit if you have.
--Which production capacity do you prefer?
