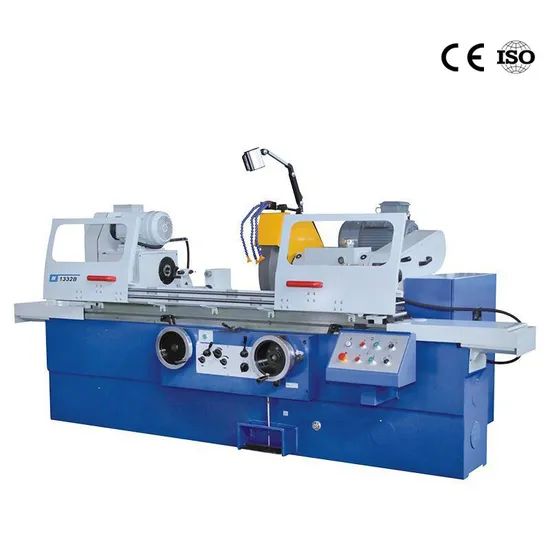

M1332bx1000/1500/2000 External Cylindrical Grinder Machine Grinding Machine Senmo
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
M1332B
Type
External Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84602911
Product Description
| Cylindrical Grinding Machine M1332B Feature |
| M1332B cylindrical grinder is designed on the basis of M1332A cylindrical grinder. It is suitable for cylindrical grinder. Its accuracy is IT6-1T5. The vertical stroke of the worktable is driven by hydraulic pressure, stepless speed change, or by hand wheel lubrication. It is used for hole passing. The lateral stroke of the shaft head is equipped with hydraulic fast forward and backward manual micro-feed. It also has the function of automatic circulation of feeding grinding wheel. Workpiece, grinding wheel, oil pump and belt pulley are driven by their respective motors. Two sets of sliding bearings consisting of four bushes are used as the spindle bearings of grinding wheel. The spindle is bold, the motor is increased, and the grinding efficiency is high. The grinding wheel dresser is installed on the tile frame and the hydraulic tailstock upper back device. The machine has moving parts such as electric and hydraulic chains, which is safe and reliable to operate. MC1332B series workbench adopts hydrostatic guideway to move. |
| Specifications | M1332B | MC1332B |
| Grinding length external | 1000/1500/2000/3000mm | 2000/3000mm |
| Grinding diameters | Φ8-320mm | Φ8-320mm |
| Center height | 180mm | 180mm |
| Max travel of worktable | 150kg | 500kg |
| Worktable speed | 0.1-4m/min | 0.1-4m/min |
| Max speed of grinding wheel | 35m/s | 35m/s |
| Max travel of table | 1100/1600/2100/3100mm | 2100/3100mm |
| Swivel range of worktable | -3-+7°/-3-+6°/-2-+5°/-2-+3° | -2-+5°/-2-+3° |
| External wheel size | Φ600x75xΦ305mm | Φ600x75xΦ305mm |
| Spindle speed of worktable | 26 52 90 130 180 260r/min | 26 52 90 130 180 260r/min |
| Grinding spindle speed | 1100r/min | 1100r/min |
| Headstock top | NO.5 Morse | NO.5 Morse |
| Tailstock top | NO.4/NO.4/NO.5/NO.5 Morse | NO.5 Morse |
| Rapid advance and win draw amount | 50mm | 50mm |
| Wheelhead displacement per rev of handwheel coarse/fine | 2/0.5mm | 2/0.5mm |
| Wheelhead displacement per div of handwheel coarse/fine | 0.01/0.0025mm | 0.01/0.0025mm |
| Total motor power | 14.27kw | 14.27kw |
| Overall dimensions(LxWxH) | (3605/4605/5605/7605)x1810x1515mm | (5605/7605)x1810x1515mm |
| Machine weight | 4000/4600/6600/8600kg | 6600/8600kg |
| Standard Accessories | Optional Accessories | |
| ·Complete set of electric equipment | ·Wheel balancing stand | |
| ·Complete set of coolant equipment | ·End-face dresser | |
| ·Wheel peripheral dresser | ||
| ·Wheel flanges | ||
| ·Wheel balancing mandrel | ||
| ·Open type steady rest | ||
| ·Leveling wedge | ||
| Working Accuracy | ||
| O.D.Roundness | ≤1500 1.5μm | |
| >1500 2.5μm | ||
| Uniform of dia. in longitudinal section | ≤750 5μm | |
| >750 8μm | ||
| Surface roughness | Ra 0.16μm |
