Automatic Horizontal Injection Moulding Machine with High Speed

Product Description

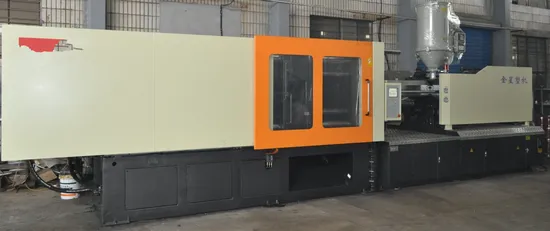

Horizontal Injection Molding Machine
I Description of horizontal injection molding machine
This machine is currently the best cost-effective injection molding machinery, can be used for a variety of thermoplastic plastic (nylon, ABS, 372, polypropylene, polystyrene) processing, widely used in automotive, instrumentation, electronics, telecommunications, toys, daily necessities and other parts injection molding.
II characteristics of horizontal injection molding machine
This series of machine design reference to the advantages of domestic and international famous brands of advanced models, with excellent material, advanced structure, beautiful appearance, simple operation, convenient adjustment, easy to repair, with electrical control and reliable, advanced hydraulic component characteristics of durable, stable operation, reliable machine.
1. The operation method contain manual, semi-automatic, fully automatic and so on.
2. The safety door electrical, mechanical protection device, to ensure safety in production.
3. The injection screw and heating cylinder are made of high quality nitride steel, it has wear resistance, corrosion resistance.
4. Oil motor automatic gear die adjustment, five-star hydraulic motor directly driving screw plasticizing, and variable, plasticizing properties.
5. Five fulcrum inclined double toggle clamping hydraulic machinery, motion characteristics, high speed and energy saving.
6. High performance hydraulic valve, 24V DC control.
III Main technical data of horizontal injection molding machine
3.1 Injection part

Item	Data
	A	B	C
Screw Diameter	80mm	85mm	90mm
Length/diameter ratio	21	20	18.9
Shot size(theoretical)	1965 cm3	2218 cm3	2487cm3
Injection weight	1788 g	2018 g	2266 g
Injection rate	442 g/s	499 g/s	560 g/s
Plasticizing capacity	80 g/s	100 g/s	118 g/s
Injection pressure	168 MPa	149 MPa	132 MPa
Screw speed	0-130rpm

3.2 Clamping part

Item	Date
Clamping force	5000 KN
Toggle stroke	770 mm
Space between tie-bars	820×800 mm
Max. mold height	810 mm
Min. mold height	330 mm
Ejector stroke	240 mm
Ejector tonnage	150KN
Ejector number	13

3.3 Others

Max. pump pressure	16MPa
Pump motor power	55kW
Barrel heating power	31.4kW
Machine weight	About 20000kg
Machine dimension	7660 x 1880 x 2690mm
