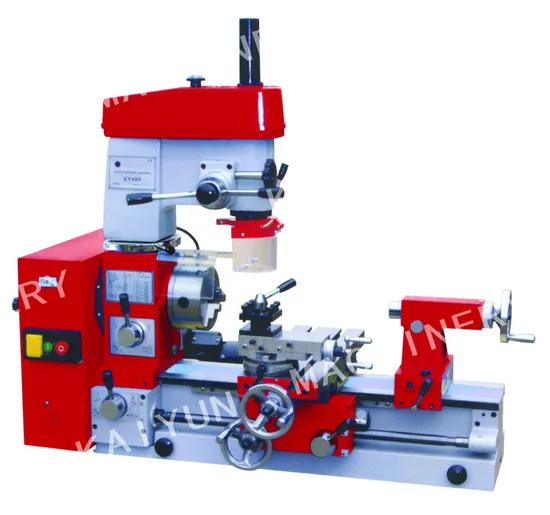

High-Efficiency Multi Purpose Combination Machine (KY400)
| US$840.00-1,092.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
KY400
Automation
Manual
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Color
Red
Drill Capacity
15mm
Spindle Bore
20mm
Swing Over Bed
420mm
Taper of Spind Bore
Mt3
Milling Table
150*200mm
Warranty
1 Year
Spindle Travel
85mm
Range of Spindle Speeds
117 ~1300rpm
Face Mill Capacity
63mm
Transport Package
Plywood Case
Trademark
KY
Origin
China(Mainland)
Production Capacity
150-200 Sets /Month
Product Description
| Specification | |
| Model No | KY400 |
| Swing over bed | 420mm |
| Distance between centers | 400mm |
| Taper of spind bore | MT3 |
| Spindle bore | 20mm |
| Range of spindle speeds | 160-1360rpm |
| Range of lingitudinal feed | 0.05-1.75mm/r |
| Range of inch threads | 8-120T.P.I |
| Tange of metric threads | 0.2-3mm |
| Travel of top slide | 80mm |
| Travel of cross slide | 120mm |
| Tailstock spindle travel | 70mm |
| Taper of tailstock quill | MT3 |
| Drilling &Milling | |
| Drill capacity | 15mm |
| Milling table | 150*200mm |
| End mill capacity | 20mm |
| Face mill capacity | 63mm |
| Spindle travel | 85mm |
| Taper in spindle bore | M.T.3 |
| Range of spindle speeds | 117 ~1300RPM |
| Optional accessories | |
| Four-jaw chuck | 1 set |
| Backplate | 1 pc |
| Follow rest | 1 pc |
| Steady rest | 1 pc |
| Face plate | 1 pc |
| Collet chuck | 1 set |
| Turning tools | 1 pc |
| Standard Accessories | |
| Drilling chuck | 1 pc |
| Toolbox & tools | 1 set |
360° rotation in vertical plane Drill / Mill vice-incorporated in top slide Power lingitudinal feed allows threading Forward / Reverse switch Magnetic switch and chuck cover according to "CE" standard Fully-adjustable carriage Four-Position Turret Post Shielded and lubricated-for-life bearings packing
