NPK Bulk Blending Rotary Fertilizer Mixer Machinery for Fertilizer

Product Description

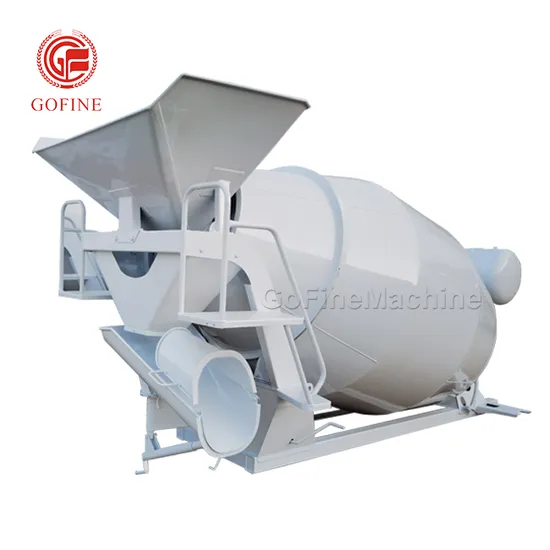

NPK Bulk Blending Rotary Fertilizer Mixer Machinery For Fertilizer
Product Overview The main equipment of the BB fertilizer mixer adopts forward and reverse operation, and the material is mixed and output through a special internal screw mechanism and a unique three-dimensional structure. The mixing process of the BB fertilizer mixer is gentle, the material is discharged quickly, the operation is stable, the noise is small, and the original state of the material is basically not damaged. The equipment is novel in design, strong in practicability, low in price, small in floor area, large in output and even in mixing, and is deeply loved by customers.
BB FERTILIZER PRODUCT scope of application
FERTILIZER PRODUCT finished product display
Fertilizer PRODUCTION LINE BB fertilizer mixer
Production line process:
storage system--feeding system--metering system--conveyor lifting system--stir to mix--automatic packing seam bag--finished belt transfer--computer control system
Product Parameters

Mixing Bucket Part
Geometric volume	Stirring volume	Barrel diametr	Tilt angle	Shape size	Installation size	Rotation speed
3.6m³	2m³	1.6m	13°	3510*1600*1780	760*2750	0-10
5.2m³	3m³	1.8m	15°	4045*1800*2160	800*3300	0-10
6.1m³	4m³	1.8m	15°	4345*1800*2215	800*3600	0-10
8.5m³	5m³	2.05m	14°	4935*2050*2365	800*3900	0-10
9.6m³	6m³	2.05m	14°	4935*2050*2365	800*4200	0-10
10.2m³	7m³	2.15m	16°	5020*2150*2441	860*4200	0-10
11.8m³	8m³	2.2m	16°	5296*2200*2532	860*4530	0-10
13.2m³	9m³	2.2m	14°	5640*2200*2560	860*4900	0-10
15m³	10m³	2.2m	14°	6080*2200*2652	860*5300	0-10
Hydraulic system	The hydraulic transmission part adopts Keyi or Rongjiao reducer, joint venture plunger oil system, variable motor, domestic gear pump, cycloid needle motor, flow control reversing valve, large-volume radiator, so that the oil temperature is more constant. The system is more stable, and the output is faster and more uniform.
Water supply system	Water supply in the form of compressed water tank. The capacity is 350L, 300L, 400L.

Product Details Mixer principle:
The mixing mechanism is the working part of the mixer, which consists of a mixing drum, a supporting wheel and a transmission system.
The structure of the mixing drum is biconical in simplified form, and there are multiple layers of high and low blades in the drum, which form a certain angle with the axis of the mixing drum. As the mixing drum rotates, the blades make the materials move back and forth in the axial direction while lifting and falling, so the stirring is strong and the effect is good. Inside the discharge cone of the mixing drum, a pair of discharge blades are welded. When the material is evenly mixed, the rotating direction of the mixing drum is changed, and the material is discharged from the mouth of the discharge cone through the lower blade and the discharge blade. The mixing drum is supported by supporting wheels. The rotation of the mixing drum is driven by the motor through the transmission system. It works reliably. The forward and reverse rotation of the mixing drum is realized by the motor commutation.
Spiral Blade
The production process of the mixing drum blade is stamped and formed by a special mold. Alloy steel wear-resistant material is used, and wear resistant strips are additionally installed to prolong the service life of the blades.
Mixing Tank
Large tank capacity, even mixing, rotating speed 6-12r/min, outlet speed ≥2m³/min(specified 2.7m³/min), feed speed ≥3.5m³/min(specified 2.7m³/min), discharge residual rate ≤0.8%(standard requirement 3-5).
Welding Technology
After the tank body is welded, the shot blasting pretreatment process is adopted to achieve rust removal and rust prevention. The shape is elegant and beautiful, the rotation is stable and reliable, and the service life is long.
Anti-rust Technology
The hydraulic transmission part adopts Keyi or Rongjiao reducer, joint venture plunger oil system, variable motor, domestic gear pump, cycloid needle motor, flow control reversing valve, large-volume radiator, so that the oil temperature is more constant. The system is more stable, and the output is faster and more uniform.
Imported Hydraulic System and Advance Cabinet
Smooth operation and low noise.
Quality Inspection
Packaging & Shipping
About Us Zhengzhou GOFINE Machine Equipment Co., Ltd. located in Zhengzhou West Development Zone, is a large-scale fertilizer equipment supplier integrating the scientific research, production, sales, import and export services since 1987. GOFINE takes "Quality First, Customers Supreme" as its tenet,"Treat customers with honesty, create business with integrity" has been deeply rooted in the hearts of every GOFINE person. GOFINE are willing to cooperated with all the new and cooperated customers to create a glorious future together!
FAQ
1. Why choose us?
Gofine Machine is a professional equipment manufacturer, integrating scientific research, production, sales, import and export, with a history of 20 years.
2. How can we guarantee the quality?
We have a strict quality control system to ensure the factory quality of each product.
3. What can you buy from us?
Gofine Machine produces fermentation equipment, compost turning machines, crushing mixers, granulators, packaging machines and other feed machines, etc.
4. What services can we provide?
We have professional overseas installers responsible for installation, commissioning and free training. Professional personnel are waiting for you online 24 hours a day.
5. How to choose equipment?
We have a professional technical team to customize reasonable solutions for you and support customized services.
