EPS Foam Block CNC Cutting Machine / 4 Axis 3D CNC Milling Machine for Styrofoam, PU, Polystyrene, Polyurethane

EPS Foam Block CNC Cutting Machine / 4 Axis 3D CNC Milling Machine for Styrofoam, PU, Polystyrene, Polyurethane

Negotiable 1 set (MOQ)

Basic Info.

Model NO.
JCT1530L
Spindle Layout
Vertical
Spindle Number
Single-Spindle
Feed Mode
Mechanical
Controlling Mode
CNC
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Services
Product Name
EPS Foam Block CNC Cutting Machine / 4 Axis 3D CNC
Table Working Size
1500mm * 3000mm * 500mm
Rotary Working Size
1000mm Diameter, 2500mm Length
Table
Removable T Slot
Spindle Power
6kw or 9kw
Driving System
Japan Yaskawa Servo Motor and Driver
Control System
Ncstudio
Application
Styrofoam, PU, Polystyrene, Polyurethane, Wood
Option 1
3D Scanner
Option 2
Hot Wire Cutting Machine
Transport Package
Standard Packing
Specification
1500x3000x500mm
Trademark
CHAODA
Origin
Linyi, Shandong, China
HS Code
8465990000
Production Capacity
100sets/Month

Product Description

EPS Foam Block CNC Cutting Machine / 4 Axis 3D CNC Milling Machine for
Styrofoam, PU, Polystyrene, Polyurethane

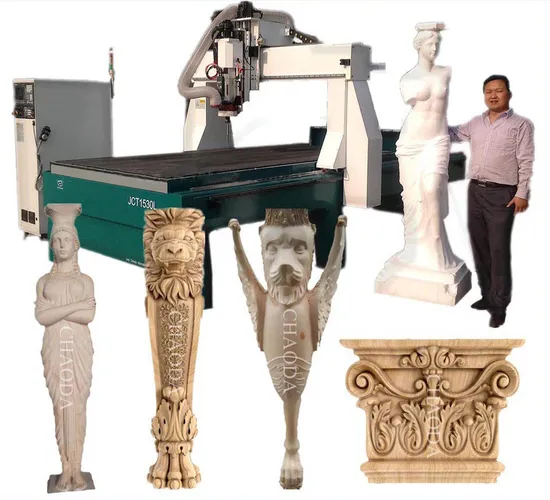

All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Machine is with a big rotary device, can make different kinds of large 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc. Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc. Advanced Ncstudio control system, very stable and easy to operate.
Model No. JCT1530L
Flat working size 1500*3000*500mm
Rotary working size 1000mm diameter, 2500mm length
Lathe bed structure T-extrusion, Thick Steel frame
Table Removable, T-slot with clamps
X structure Rack and pinion, linear square rail
Y structure Rack and pinion, linear square rail
Z structure Ball screw, linear square rail
Max. travelling speed 0-60000mm/min
Max. working speed 0-30000mm/min
Spindle 9kw air cooling ATC spindle
Tool magazine Linear type auto tool changer, 8 tools ability
Driving system Japan YASKAWA servo motor and driver
Operating system 4 axis Ncstudio with Screen
Operation language G code
Working voltage AC380V, 3-phase, 50Hz
Working materials Eps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics,
Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc.



1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
