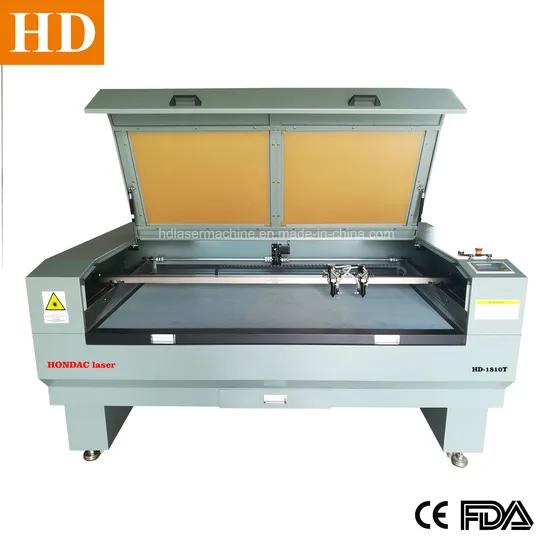

Big Area Double Head Laser Cutting Machine 1810t

Big Area Double Head Laser Cutting Machine 1810t

US$3,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HD-1810T
Application
Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry, Garments
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Automatic Grade
Automatic
Applicable Material
Nonmetal
Type
Flat-Plate
Laser Classification
Gaseous Laser
Engraving Method
Vector Engraving
Engraving Machine Type
Laser Cutting Machine
Power
Small Power
Drive Type
Stepper Drive
Certification
CE, FDA
Laser Type
CO2
Control
Automatic
Current
AC
Condition
New
Usage
Signage, Garments, Craft, Advertising, Textiles
Transport Package
Plywood Box
Specification
CE, FDA
Trademark
HONDAC
Origin
Dongguan China
HS Code
8456110090
Production Capacity
1000set / Year

Product Description

Machine Feature:
1. The machine body applied with most solid design which can ensure no deformation long time operation and transportation.
2. The machine fixed with LEADSHINE brand stepper motor and driver, linear guide and strong belt running system.
3. Adpots with adanced DSP control technology, fixed with high quality electronic parts, ensure high cutting engraving speed,
high accuracy and high stability, long time usage life.
4. Applied with imported lens and reflector mirror, ensure high laser power efficiency.
5. The machine connect with computer by USB/ INTERNET wire or U disk directly.
6. With water cooling system, exhaust fan and water pump, etc.
7. It have cutting and engraving function, it have half-cut function.

Laser cutting machine specification:
Laser source Wave Length(µm) 10.6
Optional Power ( w ) 60w, 80w, 100w, 130w, 150w
Cooling Water Cooling
Working Para. Working Area ( mm ) 600X400 900X600 1000X800 1300X900 1400x1000 1600X1000 1800X1000
Min. Line width ( mm ) 0.15 ~ 0.3
Working speed ( mm/M ) 0 ~ 36
Repeat position precision (mm) ±0.05
Compatible format PLT, DXF, AI, DST, DSB, JPG, BMP, GIF
Power AC220V ± 10%, 50/60HZ
Dimension (cm ) 120X100X115 150X120X115 160X140X115 190X150X115 200x160x115 220X160X115 240X160X115
Net Weight/ Gross weight ( kgs ) 180 / 250 270 / 350 300 / 400 350 / 450 400/500 450 / 550 500 / 600
Working environment 0 ~ 40ºC, clean and no-dust room, without water
Others total power(w) <1500
protection class IP54
Laser safety class 4 class


MACHINE DETAILS
Applicable industry:
Advertising, signage, gifts, garments, shoes, bags, curtain, model, home furnishing, decoration, label, electronical etc industry,
Suitable materials:
acrylics, wood, paper, bamboo, fabric, cloth, leather, shoe bottom, woollen, plastic, ABS, resin, ceramic, and other nonmetal materials.
MAIN MACHINE ACCESSORY

FACTORY INDRODUCTION:
Professional laser machine factory, have more than 10years experience in production of laser equipment.
Applied with high quatiy spare parts, with strict requirement of installation, tuning and testing, that make sure every machine set stabl, long time usage life.
We supply full series of laser cutting machine, CO2 marking machine, fiber marking machine etc.
Aftersales service
1. Whole set machine with 1 year warranty, except consumable parts as laser tube, lens etc.
Lifelong maintainance and repairing support service.
2. Profesional technical team support by email or online timely, free software update.
3. If need, we can send technician to cuostomer local place to supply service and support.
