Factory Price Hydraulic Plate Rolling Machine 4 Rollers Rolling Machine W12-20X2000

Product Description

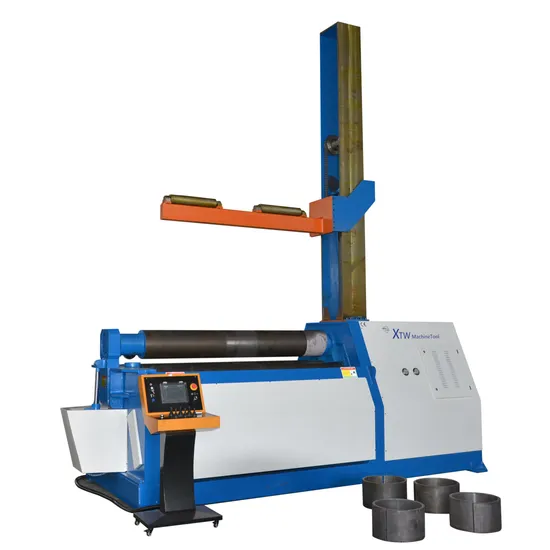

Hydraulic Plate Rolling Machine 4 Rollers Rolling Machine W12-20X2000

Main technology data of machine

No.	Name	Unit	Remark
	Model: W12-20X2000
1	Maxi Rolling Thickness	mm	20 (σ≤Q245A)
2	Maximum Pre-Rolling	mm	16 (σ≤Q245A)
3	Maximum Rolling Width	mm	2000
4	Roller Working Length	mm	2000
5	Full Load Minimum Bending Diameter	mm	600
6	Bending yield	MPa	245Mppa
7	Rolling Speed	M/min	4.5
8	Top Roller Diameter	mm	290
9	Bottom Roller Diameter	mm	260
10	Side Roller Diameter	mm	230
11	Rollers Driven	/	Hydraulic Motor with Planetary Gearbox
12	Hydraulic System Maximum Working Pressure	Mpa	20
13	Main Motor	KW	11

Upper roller part: The upper roller part is composed of upper roller, bearing, hydraulic motor and planetary reducer. The upper roll section provides torque to the rolled sheet. The working roll is the main part of the equipment, using high-quality steel 42CrMo material, after rough processing, quenched and tempered HB220~260, medium frequency quenched after finish machining HRC46-52 2.Side roller part: The side roller part is composed of side roller, bearing, arm, cylinder, etc. The side roller section provides a bending deformation force for the rolled sheet. When feeding the rolled plate, one side roller can be used as a counter device.
3.The lower roller part: The lower roller part is composed of the lower roller, the bearing, the lower roller bearing seat, the lower roller oil cylinder and the like. When the lower roller part is pre-benting, it can clamp sheet metal to prepare pre-bent as straight flange

Top support system: (optional)
The top bracket is the center upper bracket, which is installed behind the fuselage.
It consists of a movable stand. The support can be translated up and down according to the size of the cylinder, and supported from the inside of the cylinder during the winding stage. The medium and above center upper bracket has a tie rod fixed to the ground. The user must embed the anchoring device in the foundation.
The center upper bracket is either hydraulically driven or mechanically driven and is controlled by an electrical system.
Left and right support system: (optional)
Hydraulic support on both sides, also known as side bracket: It is used to support both sides of the large-diameter cylinder to prevent the rolling accuracy of the steel plate due to the drooping weight during the rolling process. The hydraulic support on both sides has multiple rows of rollers, and each side can be divided into two sections to better support the cylinder. The hydraulic support can be used as a raceway at normal time, and the hydraulic support on the feed side is provided with an axial hydraulic push rod.
Rolling Process:
Work roller balance control
Diagonal slide rail: Using the most advanced and sophisticated EPS electronic balancing system (as shown below), XTW Machine Tool Company's W12 series machine tools have an EPS electronic balancing system, through 2 sets of hydraulic cylinders for synchronous movement, OMRON PLC central controller to ensure that the work rolls under any coil load are perfectly parallel. The trim error of EPS is ±0.1mm.
Production case:
NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Located in the eastern part of the Central Jiangsu Plain, "the hometown of Chinese shearing, folding and rolling machine tools" - Haian Libao. It is adjacent to the Yellow Sea in the east, the Yangtze River in the south, Xinchang Railway in the west, and close to the 204 and 328 national highways. The company was formerly known as "the original Haian County Haiwei Machine Tool Factory." Specializing in the production of "Tongwei" brand series of shearing machines, bending machines, rolling machines, leveling machines, slitting machines, uncoiling and leveling production lines and other sheet metal processing equipment .The company has a group of professionals who have been engaged in forging design for a long time. Through the strong alliance with various casting and forging research institutes and major technical research institutes, the product structure is continuously improved, and the application of new technologies is in a leading position in the same industry. , so that the performance of the whole machine reaches the international advanced level, and it is an ideal substitute for imported machine tools. In the past few years, the company has developed a number of new structures and new technologies, and applied for a number of patents. The products have passed the provincial and municipal quality and technical supervision and inspections for many times, and have won the honorary title of "Contract-honoring and Promise-keeping" enterprises. The company's products are widely used and sold throughout the country and exported to Southeast Asia, West Asia, Africa, and Russia in recent years. And other European countries, have a place in the European and American markets. The company adheres to the tenet of "Quality First. Service First. Reputation First", takes customer satisfaction as the operating principle, and insists on providing customers with thoughtful pre-sale, in-sale, and after-sale services.
